Question:
I would like to evaluate member results in the top view. Is it possible to get the results drawn in the XY plane?
Answer:
Yes, this is also possible for the member results.

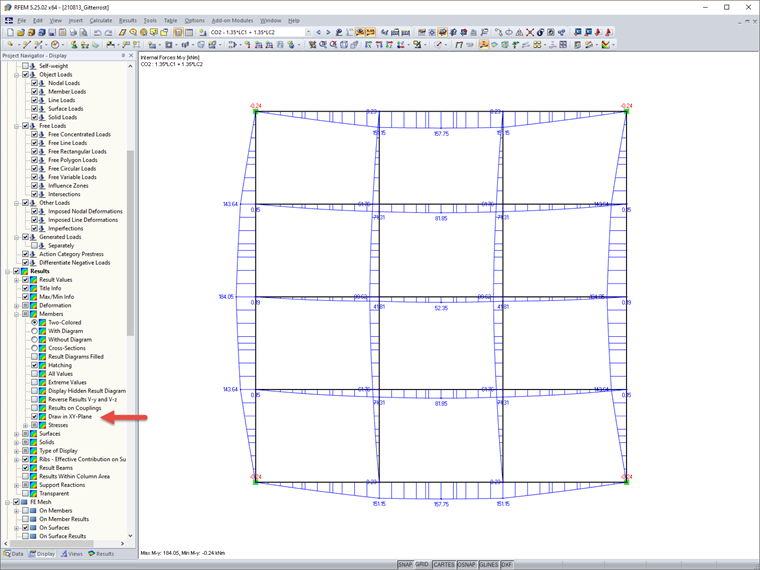

You can set this in the Display navigator when displaying the results of the members.
