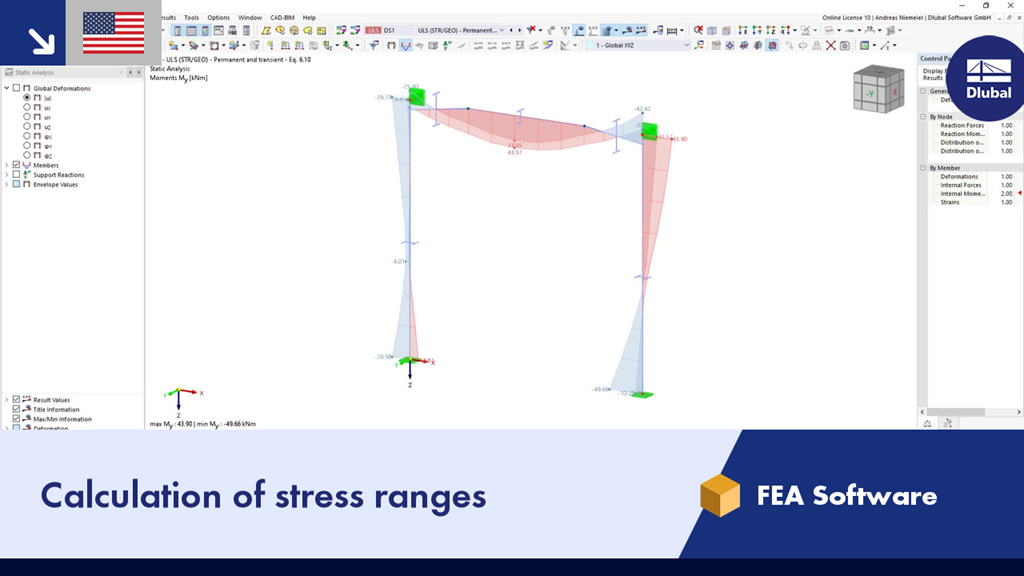

This video shows the calculation of stress ranges from the approach of different load situations. This task is done in RFEM 6 or RSTAB 9 using the "Stress-Strain Analysis" add-on with the specification of the members to be analyzed.
