Question:

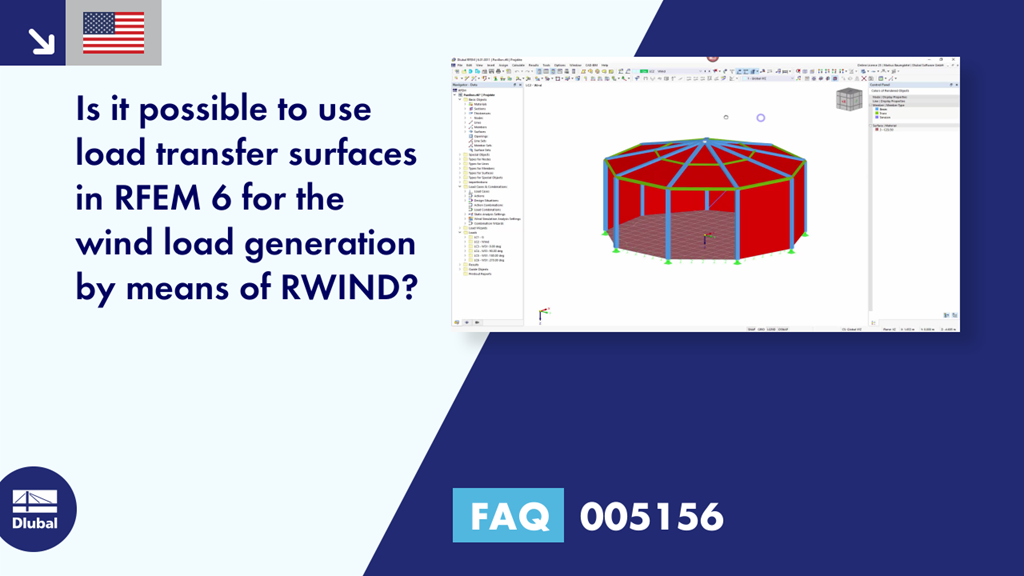

Is it possible to use load transfer surfaces in RFEM 6 for wind load generation using RWIND?
Answer:
Yes, the load transfer surface can also be used in RWIND. The resulting surface load is then transferred to the members according to the settings of the surface.
