Question:

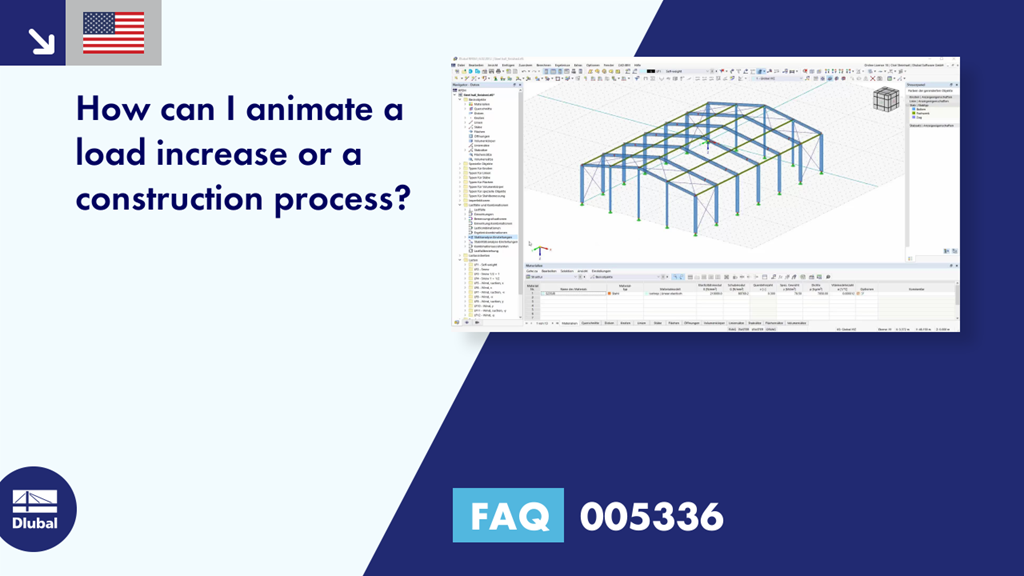

How can I animate a load increase or a construction process?
Answer:
A load increment can generally be defined in the structural analysis settings. To do this, open the Structural Analysis Settings and then simply increase the number of load increments. In order to display the intermediate results of the individual load increments in addition to the final load factor, the intermediate results can be displayed using the "Save results of all load increments" function.
