Saving time and keeping an even better overview – sounds good? Then take a look! In this short video, we present the most important new features of the last month.
In January 2023, the following features have been added to RFEM 6, RSTAB 9, and RSECTION, which facilitate your work:
00:00 RSECTION license model

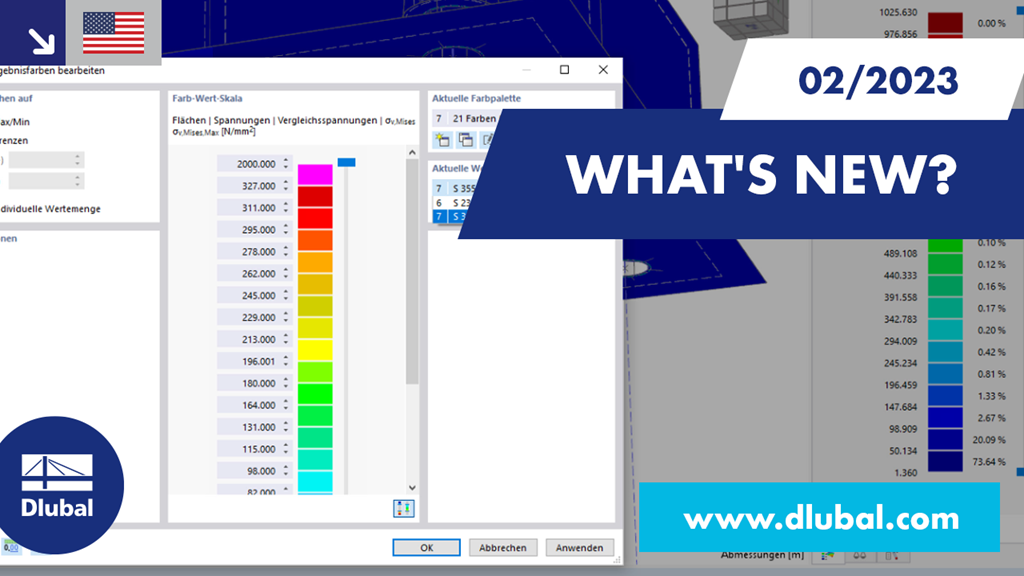

00:26 User-defined color scales
00:42 Webservice libraries for Python and JavaScript
00:59 Interface for Autodesk Revit 2023
01:22 Smooth color transitions
Product Feature
Product Feature
Mia is accessible in the programs and prevents the hassle of following up by email or phone.
You can open the cross-sections in RSECTION using a direct connection, modify them there, and transfer them back to RFEM/RSTAB. Both RSECTION cross-sections and library cross-sections, with the exception of elliptical, semi-elliptical and virtual joists, can be opened and modified directly in RSECTION by clicking a button.
For example, you can thus adjust the reinforcement layout of user-defined RSECTION cross-sections directly in a local RSECTION environment in RFEM/RSTAB. This feature is currently only available for cross-sections with a uniform distribution type. The shear and longitudinal reinforcement defined for library cross-sections is not imported into RSECTION.
In the Concrete Design add-on, you can design any RSECTION cross-section. Define the concrete cover, shear force, and longitudinal reinforcement directly in RSECTION.
After importing the reinforced RSECTION cross-section into RFEM 6 or RSTAB 9, you can use it for design in the Concrete Design add-on.
Go to Explanatory Video
When performing a design according to EN 1993‑1‑3, it is possible to graphically display a mode shape for the distortional buckling of a cross-section, and for the RSECTION cross-sections.
The mode shape can also be output in RSECTION 1 for library cross-sections.
