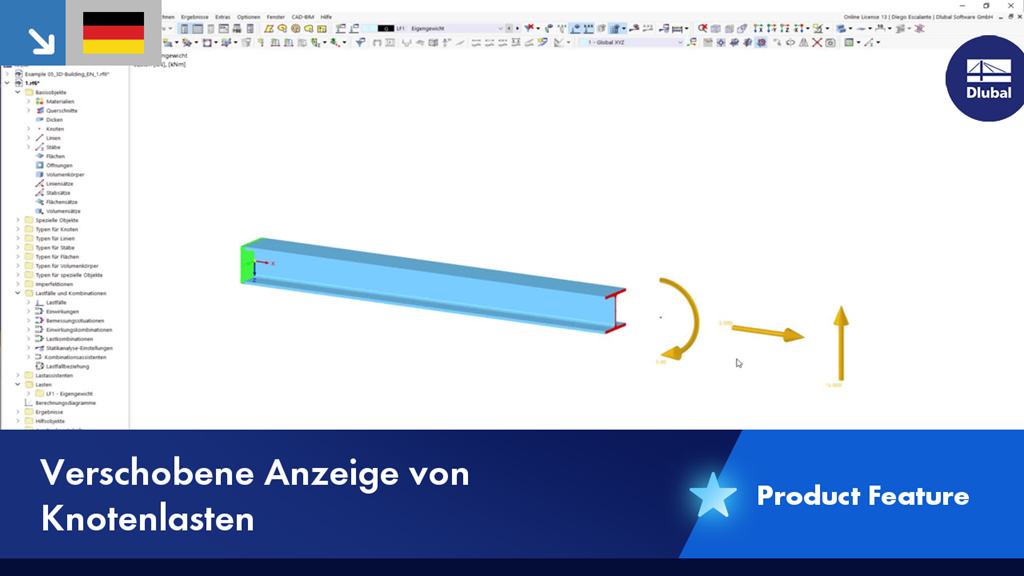

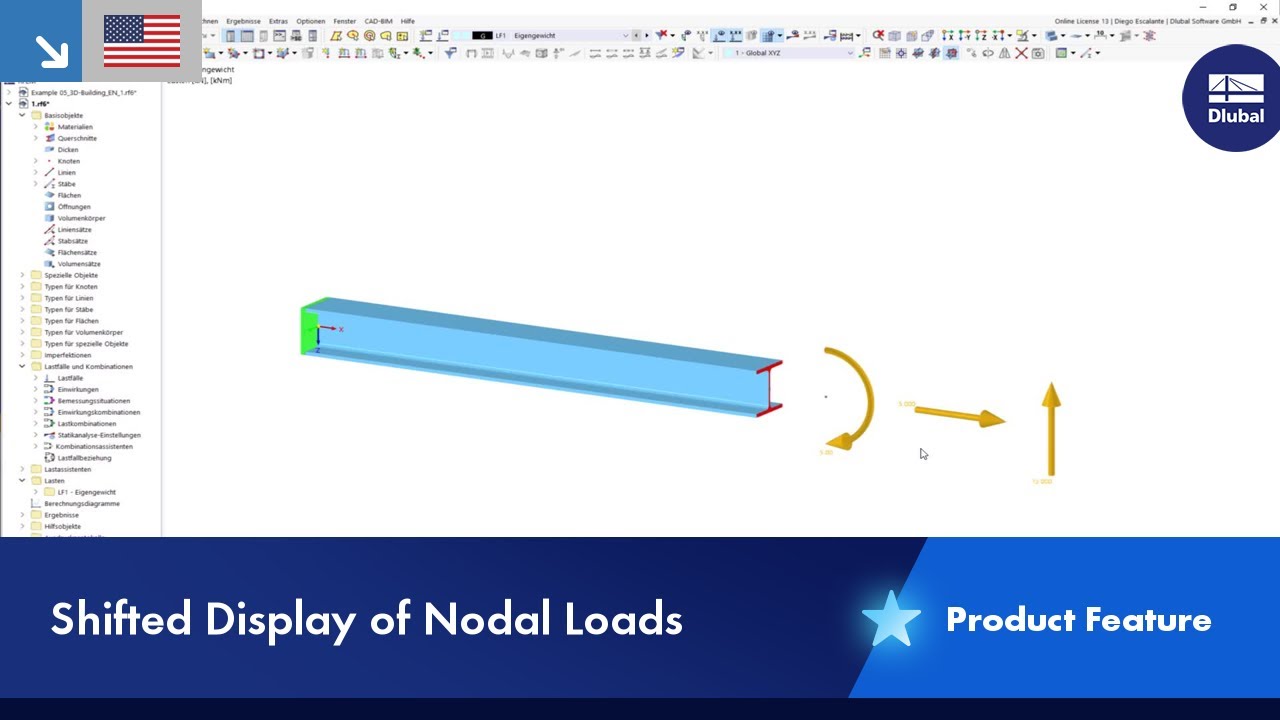

Would you like to display nodal loads or load components that act on one point next to each other? Just use the "Shifted Display" option. This allows you to define offsets in the x, y, and z directions, as well as the size and spacing.
