Question:
When creating a printout report, is there any option to display the values of loads generated by load transfer surfaces?
Answer:

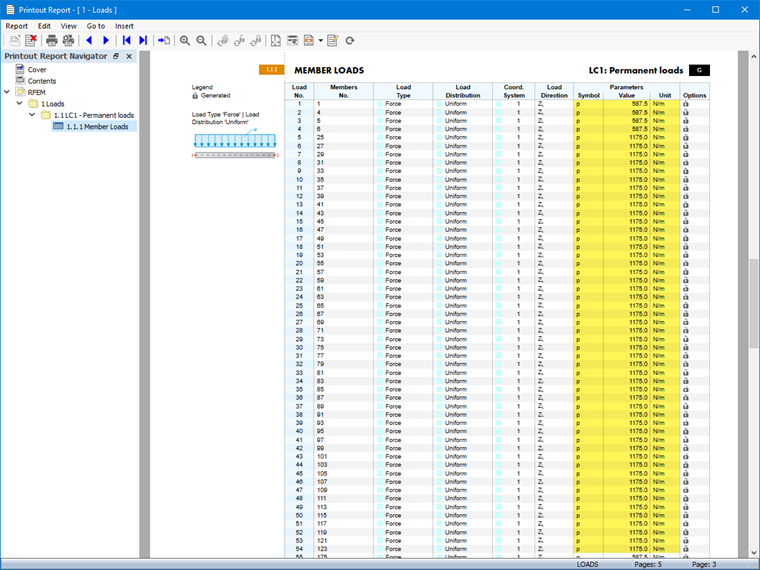

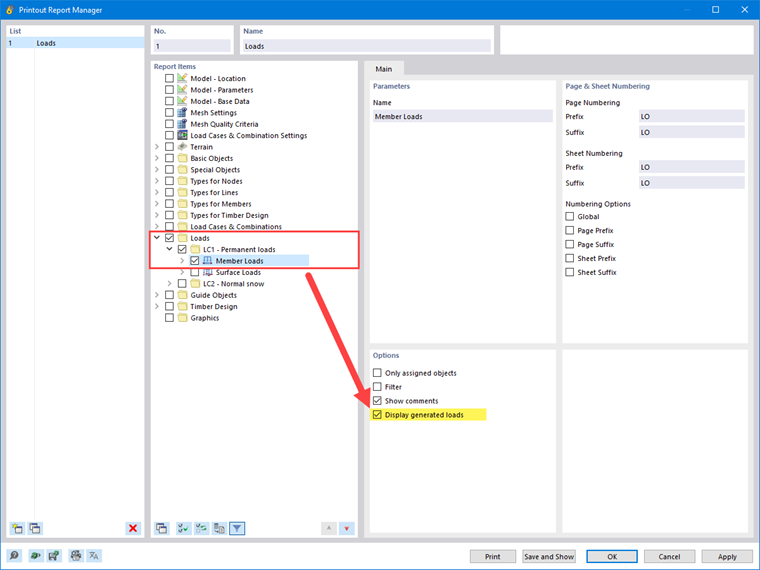

Select the "Member Loads" entry in the Print Reports Manager and activate the "Display generated loads" option, which is disabled by default:

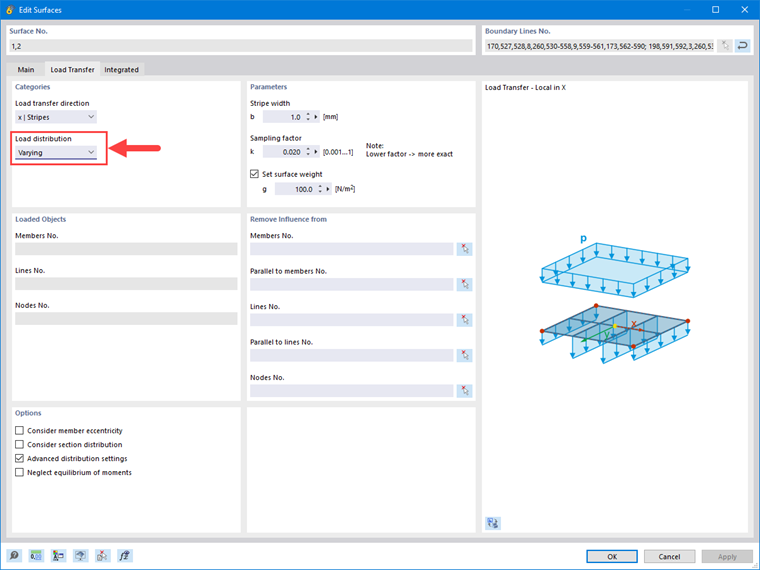

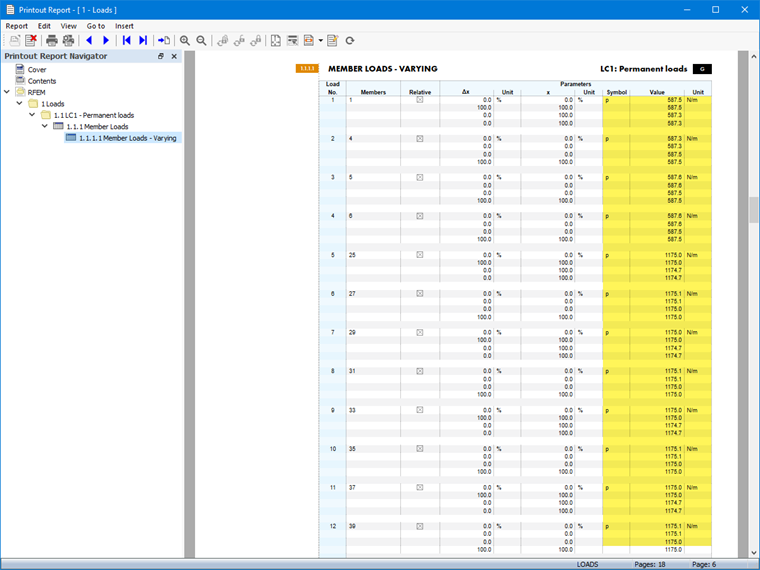

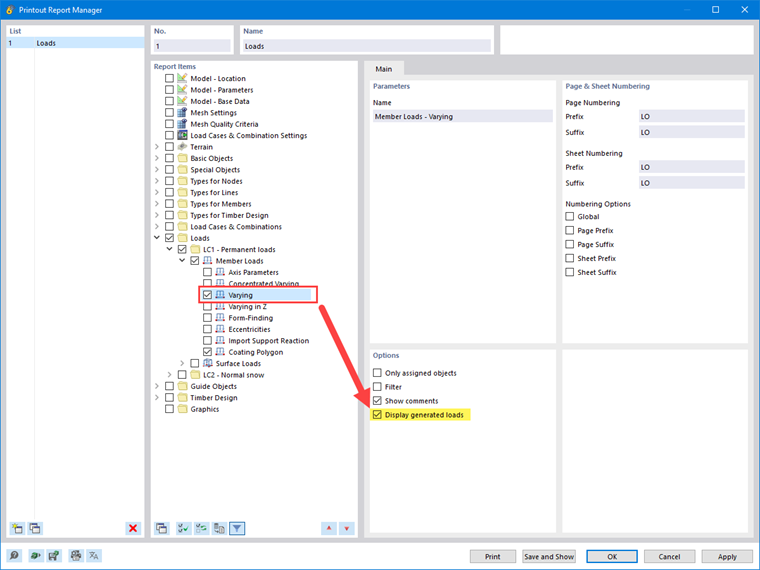

If the load distribution of the transfer surface is "variable", the values of the generated member loads will also be of the "Variable" type; therefore, it is necessary to select the corresponding entry in the Printout Report Manager and also activate the "Display generated loads" option:
