How I can display the deflection without the undeformed model?

Answer

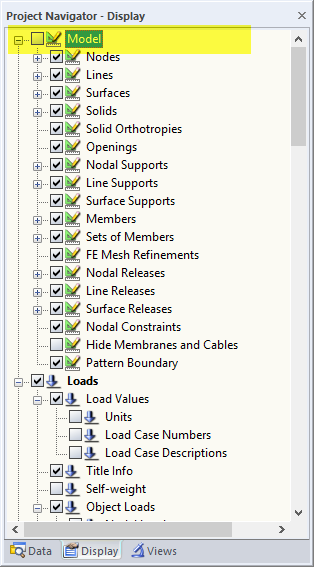

The undeformed model in the deflection plot could be deactivated by the "arm" model in the Show-Navigator.

Keywords

Deflection, display , undeformed, initial, model
