Is it possible to display the mean value of the line support results?

Answer

By using the "Display" navigator, you can control various options.

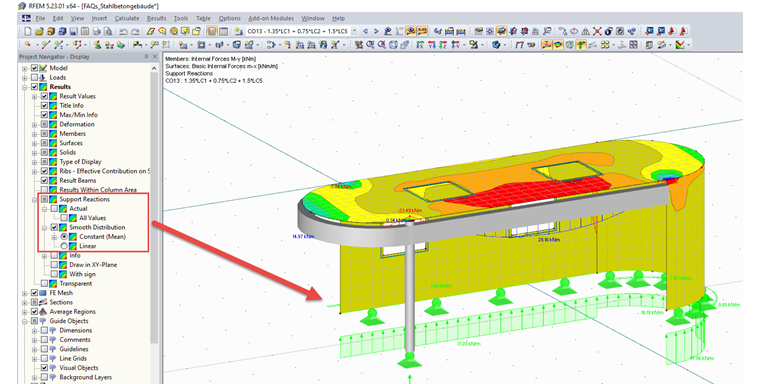

Under the "Results" category, you can switch between "Actual" and "Smooth Distribution" for the support reactions. For this, the variants "Constant (Mean)" and "Linear" are also available for selection (see Figure 01).

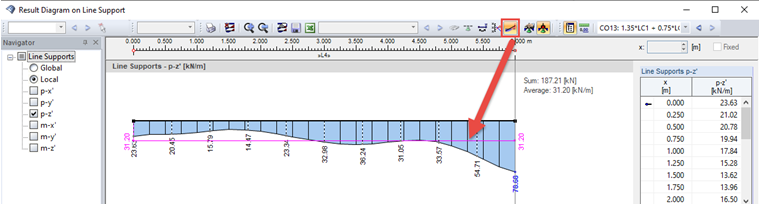

By the way, it is also possible to display a smooth line when displaying result diagrams (see Figure 02).

Keywords

Smooth line Actual Smooth distribution Constant Average Linear
