Answer:

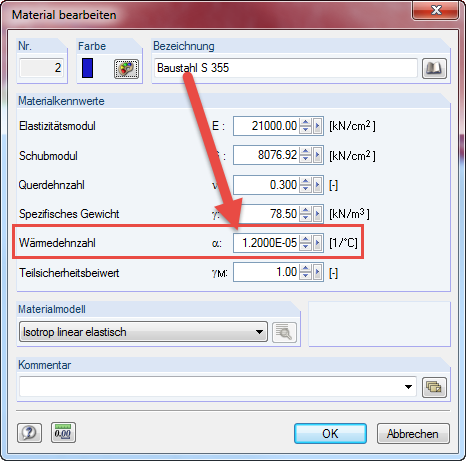

The coefficient of thermal expansion for the material is probably zero. As soon as you change it back to a realistic value, the message should no longer appear.
Question

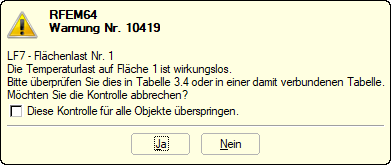

When calculating a temperature load case, I get Error No. 10419 "The temperature load is ineffective". What should I do?
