Some members are not considered in the load generation. What is the reason?

Answer

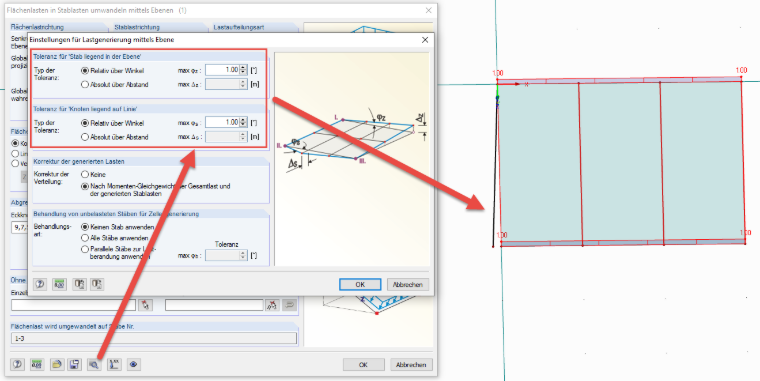

In most cases, the tolerances are insufficiently defined in the settings for the load generation (see Figure 1). You can recognize the relevant members very quickly, because they are not selected in the preview of the load plane with the selected members by default. This is because the relevant members lie outside the plane. Thus, further adjustments in the tolerance settings of the area load plane are required.
