Is it possible to enter and design a reinforced concrete surface with a reinforcement layer in the center of the surface?

Answer

No, this is unfortunately not possible.

The program concept of RF‑CONCRETE Surfaces is designed in such a way that it is always necessary to place the reinforcement on the top and the bottom layer.

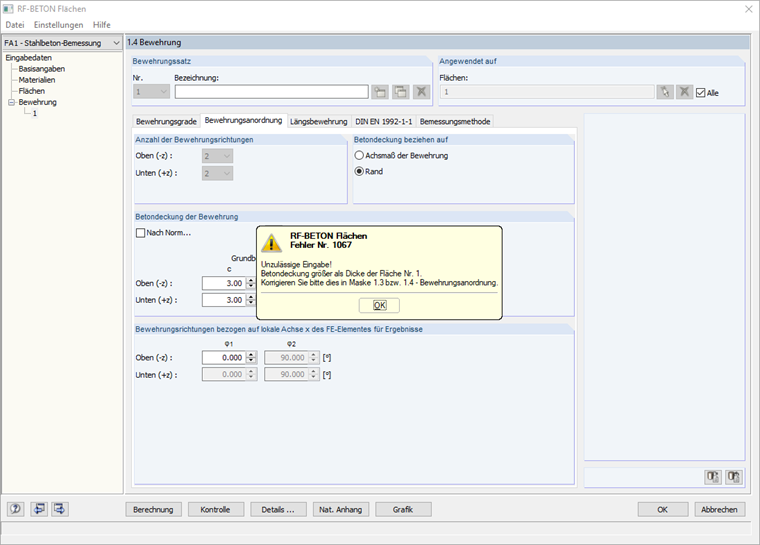

You can try to concentrate the individual reinforcement layers in the center of the surface, if necessary. However, make sure that the individual reinforcement layers do not "touch" each other. Otherwise, an error message appears. See Figure 01.

Keywords

Reinforcement layout Central reinforcement Concrete cover Single-layer reinforcement
