Can I extend a line or a member by a certain measure of length or until it reaches another line or member?

Answer

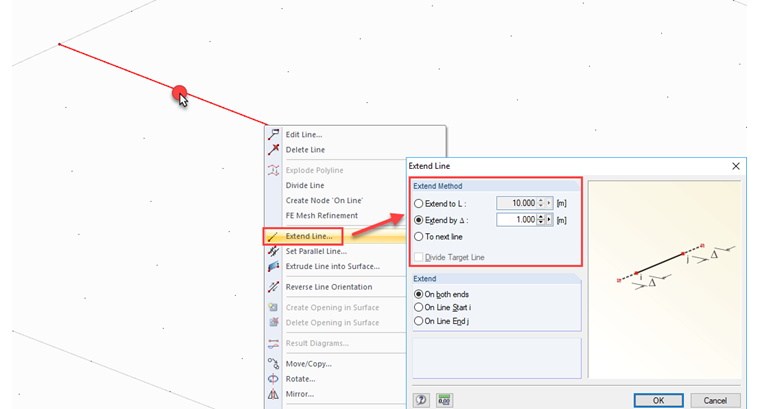

Yes, both are possible. Right-click a member or a line and use the shortcut menu to open the 'Extend Line' or the 'Extend Member' function.

Keywords

Extend member Extend line Extend
