Answer:

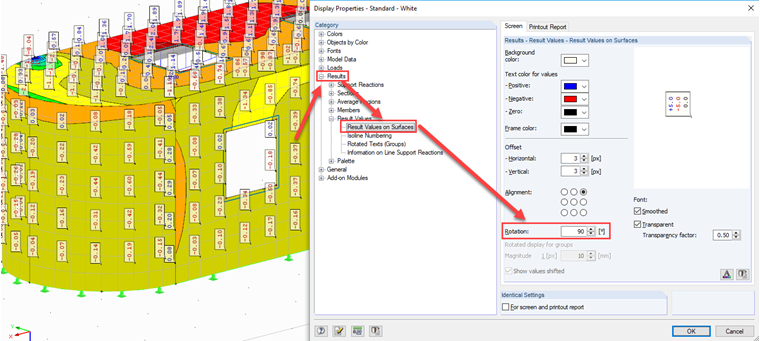

Result values can be rotated by any angle (see Image 01). With this setting, all result values will be rotated. At present, it is not possible to define different orientations for individual walls and ceilings.
Question
Is there any possibility in RFEM to rotate result values by 90°?
