FAQ 003191 EN

19 June 2019

Markus Baumgärtel Display Settings RFEM RSTAB

Why do I see single edges of surface displayed green-colored in wireframe display model?

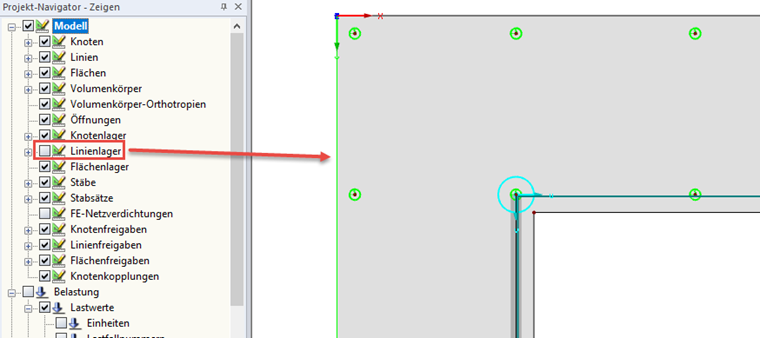

If the line supports are hidden in the Project-Navigator - Display, these supported lines are displayed in green by default (see figure).


Line support Green
