FAQ 003213 EN

24 June 2019

Printout Report RFEM RSTAB

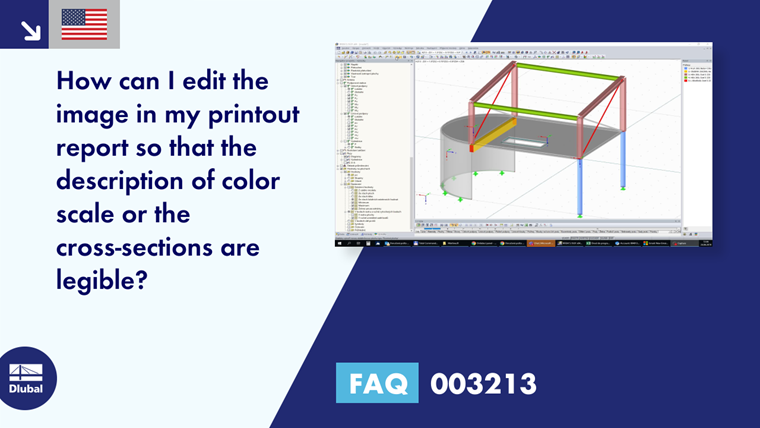

How do I edit an image in the printout report to make profile or color scale descriptions legible?


You can edit the text size in Image Properties → Color Scale → with Text Factor. Frame size can be adjusted relatively or absolutely. If the frame is larger and covers part of the image, adjust the edges to move the image.


Printout report Text size Color scale
