Answer:

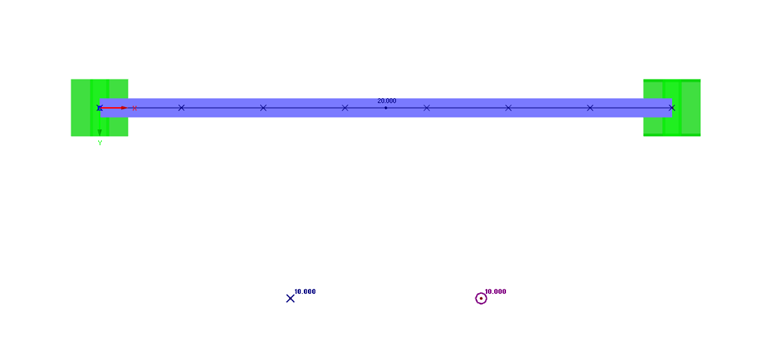

Whether you display a load with a cross or a circle is governed by the viewing direction. If the viewing direction follows the load, a cross is displayed. However, if the viewing direction is opposite the load direction, a circle is displayed.
Question

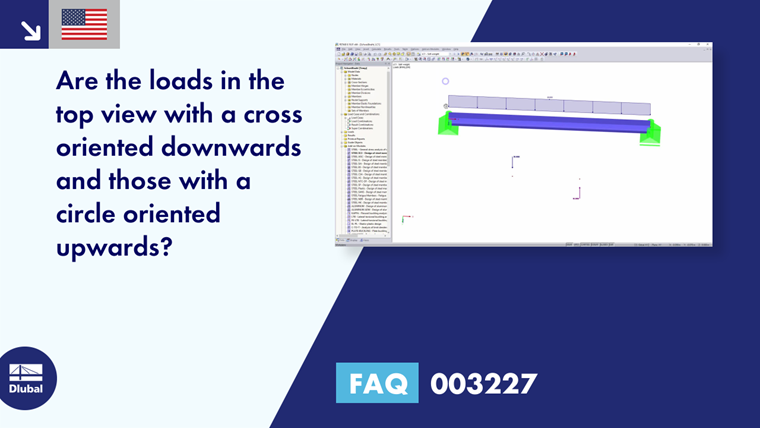

Are the loads in the top view with a cross oriented downwards and those with a circle oriented upwards?
