Thomas Günthel Modeling | Structure RFEM

I have several surfaces with elastic foundations, which have line hinges among each other. Is the elastic foundation also applied in the area of the line hinges?

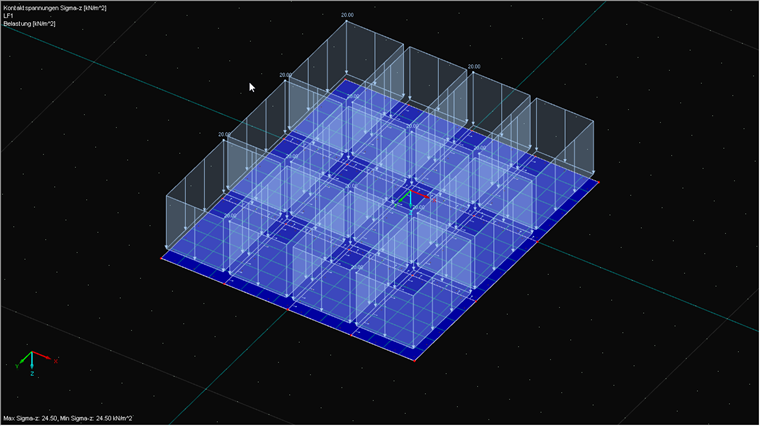

Figure 01 shows an example. As you can see, the same contact stresses are generated at each location of the surfaces and thus the elastic foundation springs have been applied correctly everywhere.

Since line hinges are internal line releases, the same applies to the line releases.


Foundation Line hinge Line release
