Support Rotations and Eccentricities in RF-/STEEL EC3 Warping Torsion

To which axes do the support rotations and support eccentricities in RF‑/STEEL EC3 Warping Torsion refer?


Answer:

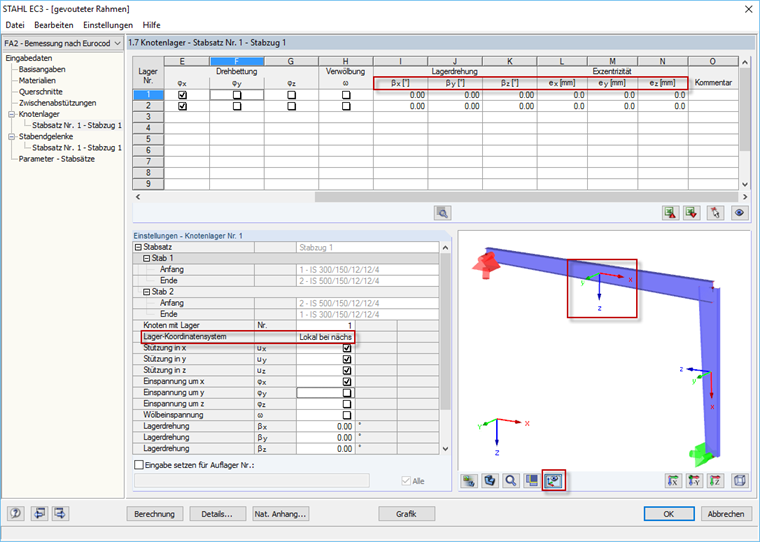

The axes to which the support rotations and support eccentricities refer are preset to the local member axes, which can be displayed with the button under the partial view. However, they can also be switched to the global axis system.



;
