Why does RF-CONCRETE Members or CONCRETEION determine a significantly higher provided reinforcement than required reinforcement?

Answer

This may be related to the curtailment of the provided reinforcement.

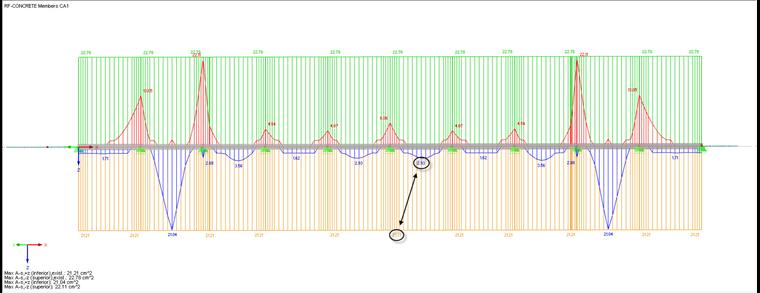

If no curtailment is activated, a uniform reinforcement is designed across the entire structure (Figure 01).

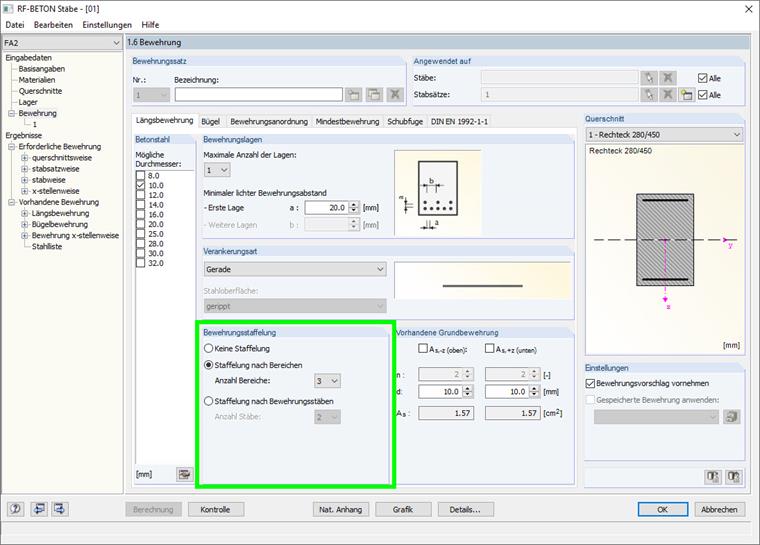

The curtailment of the reinforcement can be activated in the "Longitudinal Reinforcement" tab of the add-on module (Figure 02).

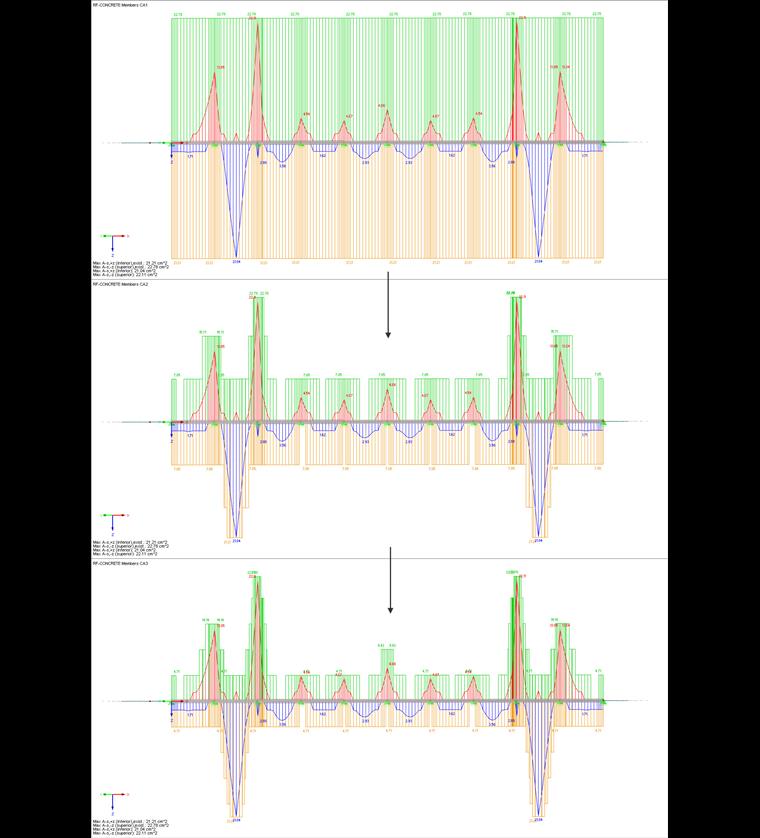

After activating the curtailment, you can define a number of zones. The higher the number of zones is, the more precisely the provided reinforcement can follow the distribution of the required reinforcement (Figure 03).

Keywords

Required reinforcement provided reinforcement Difference Curtailment
