I have modified stiffnesses of members. However, this modification should only be considered for specific load combinations. What is the procedure?

Answer

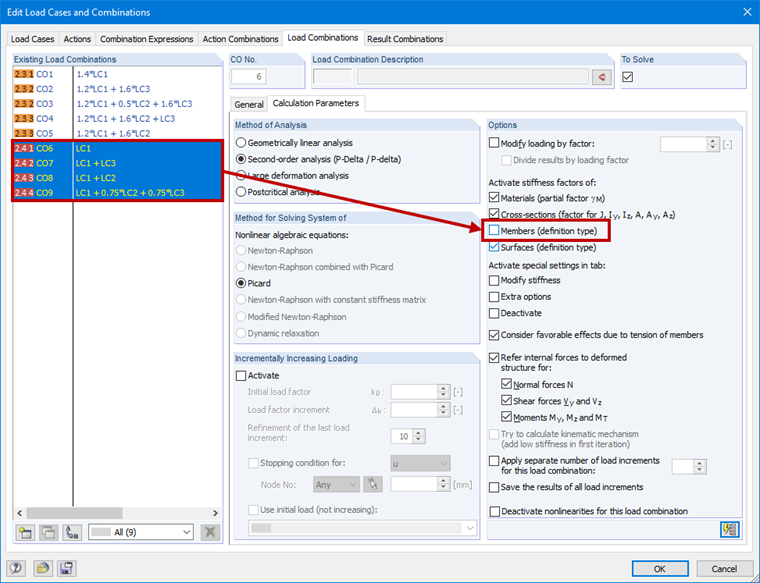

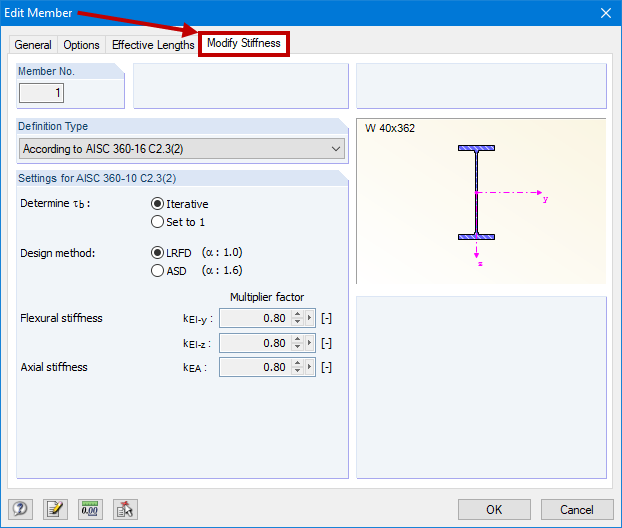

In order to only consider the stiffness modification (see Figure 01) for certain load combinations, it is necessary to deactivate this option for the corresponding load combinations in Calculation Parameters (see Figure 02).

Keywords

Stiffness modification Stiffness reduction Stiffness
