It seems that the members stay not deformed after my RF-FORM-FINDING calculation. What did I wrong?

Answer

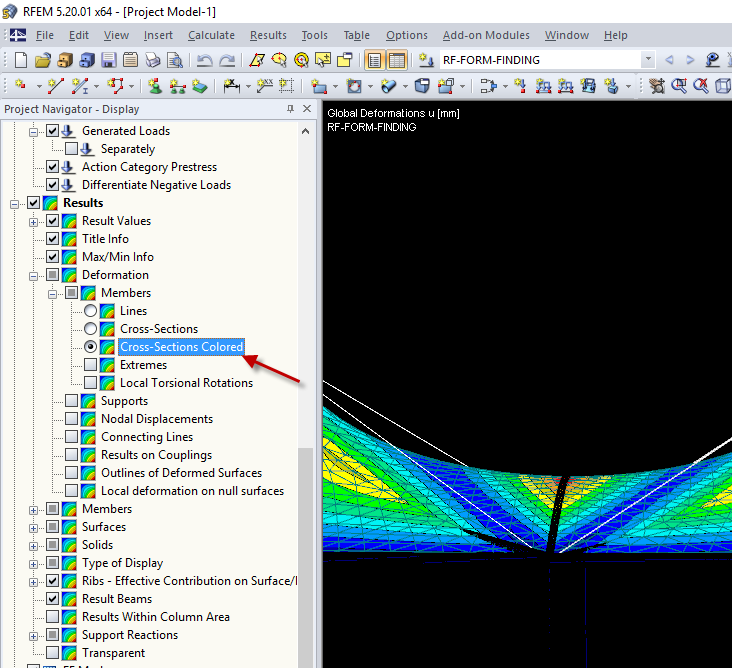

Deformation of members are shown as single colored lines per default. Please show them as colored cross-sections. It is also always a good idea to decrease the Display factor for the Deformation to 1.0 otherwise the results might be misinterpreted.

Keywords

Deformation Member Display
