Which cross-sections can I design in the RF-/TIMBER Pro add-on module?

Answer

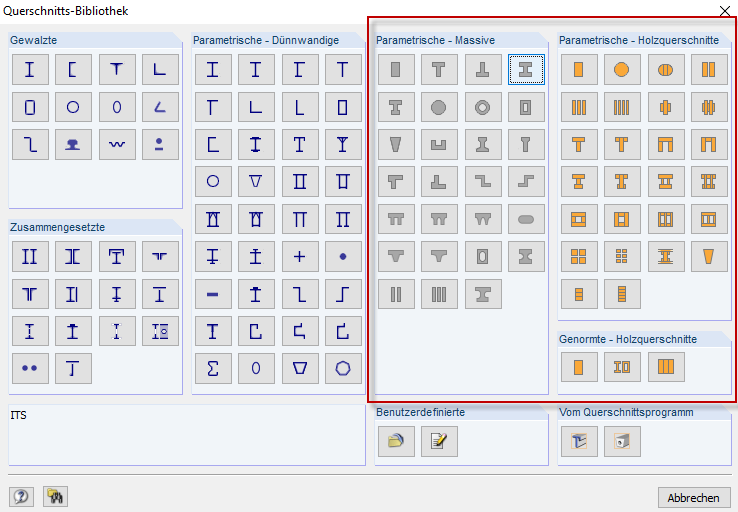

Basically, all cross-sections of the solid and hybrid cross-section groups can be designed in the RF-/TIMBER Pro program. In Figure 01, they are displayed on the right.

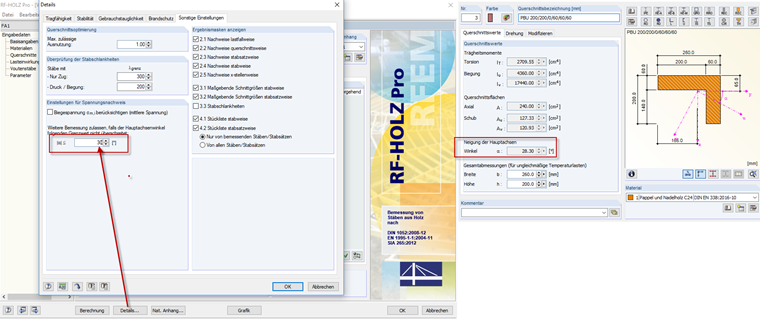

For more complex asymmetrical cross-section shapes, it may be necessary to adjust the allowable inclination of principal axis on a user-defined basis in the add-on module (see Figure 02).

Keywords

Cross-section Cross-section geometry Cross-section shape Principal axis Asymmetrical
