Answer:

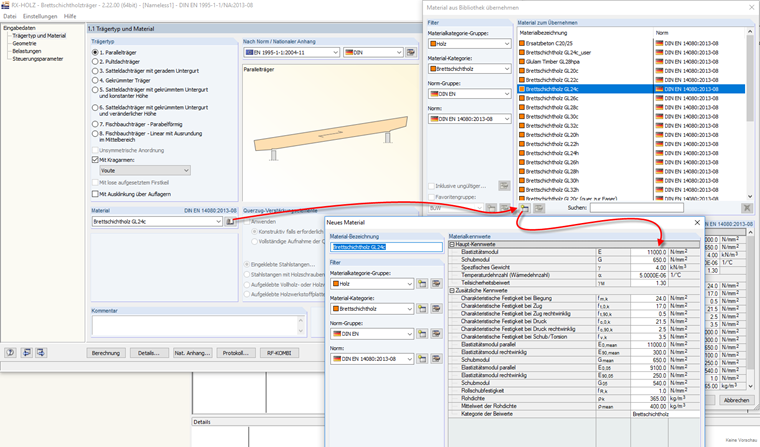

In RX‑TIMBER, you can create a user-defined material as a new material in the material library (see image), similar to the programs RFEM/RSTAB.In contrast to RFEM/RSTAB, the category is set to "timber" in this case.
Question
How do I create a user-defined material in the RX‑TIMBER program?
