In the case of sections, no smooth line is displayed for result combinations. What can I do?

Answer

In the default settings of the section results for result combinations, the "Max and Min Values" are displayed. Smoothing is not reasonable in this case.

As soon as you change the result display to "Max Values" or "Min Values," the smooth line is displayed.

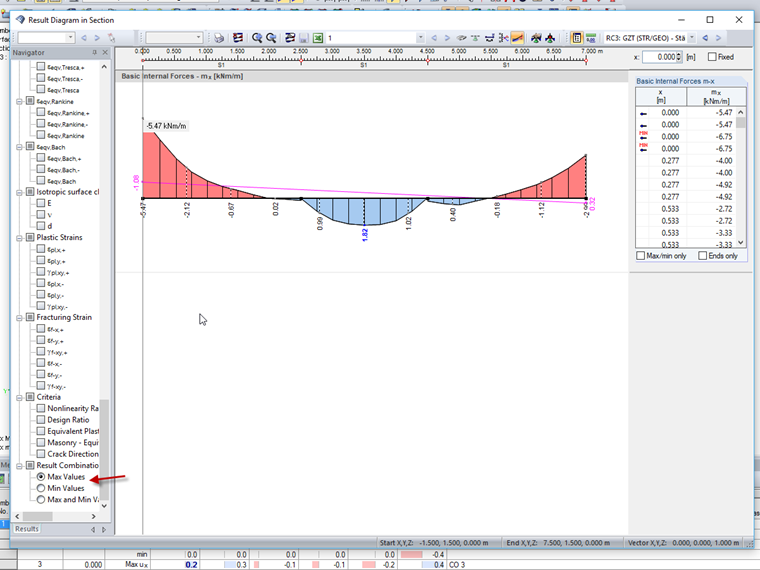

Figure 01 - Display of RC Results with Smooth Line

Keywords

Section Smoothing Result combination
