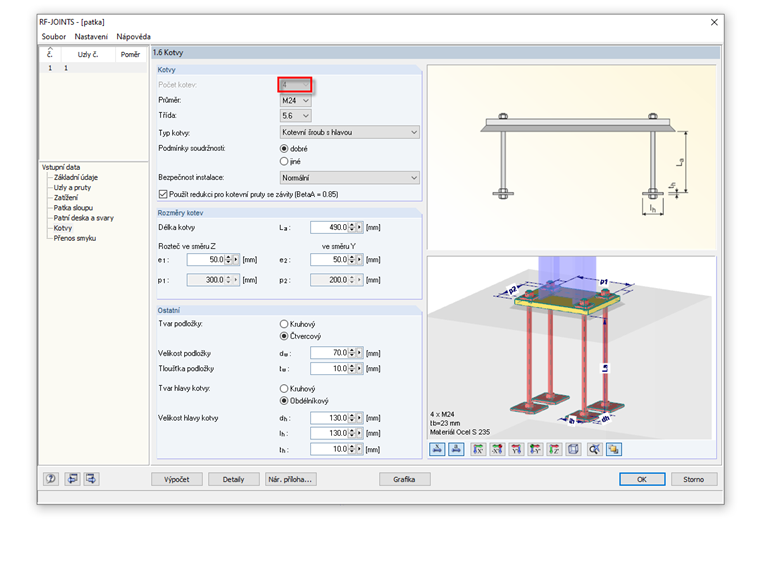

I design a steel column footing in the RF‑JOINTS add-on module, but cannot change the number of anchors. How do I make this drop-down menu available?

Answer

Unfortunately, this is not possible in the current version 5.23. This option will be released in further development.
If you set the footing as hinged, the program automatically sets two anchors. For rigid footing, four anchors are set.

Keywords

RF-JOINTS Steel footing Anchors
