Why is it not possible to select the connecting surface under "Integration Width - Side 2" in the "Edit Rib" dialog box?


The button for selecting the connecting surface becomes active as soon as you enter or select the integration width b2, see Figure 01.

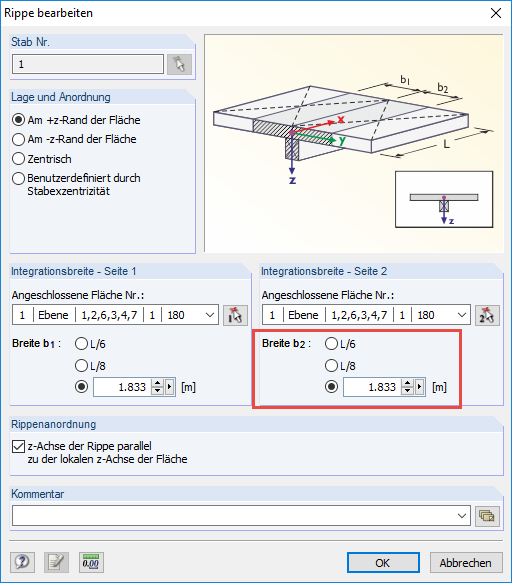

Figure 01 - Integration Width - Side 2


Rib Integration width Selection Connecting surface
