RFEM 5 / RSTAB 8 | Definition of Individually or Simultaneously Acting Load Cases from Different Actions

How can I define individually or simultaneously acting load cases from different actions?

Answer:

The following procedure applies to the definition of individually or simultaneously acting load cases from different actions:

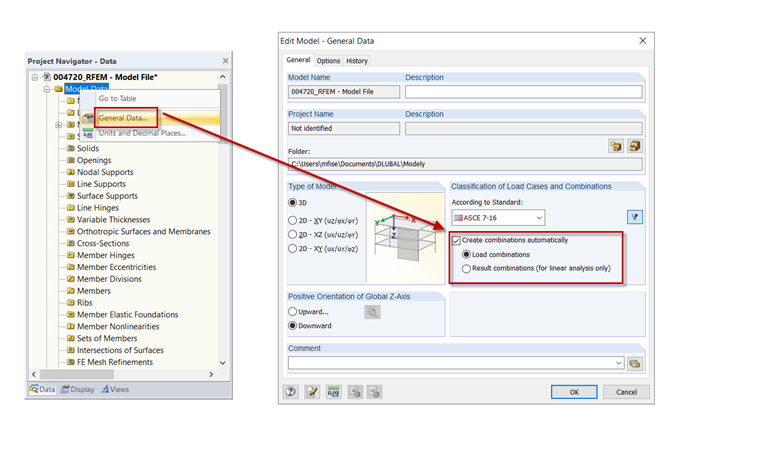

  • Activate the automatic combinations in the General Data.
    Automatic Combinations
    1 Automatic Combinations

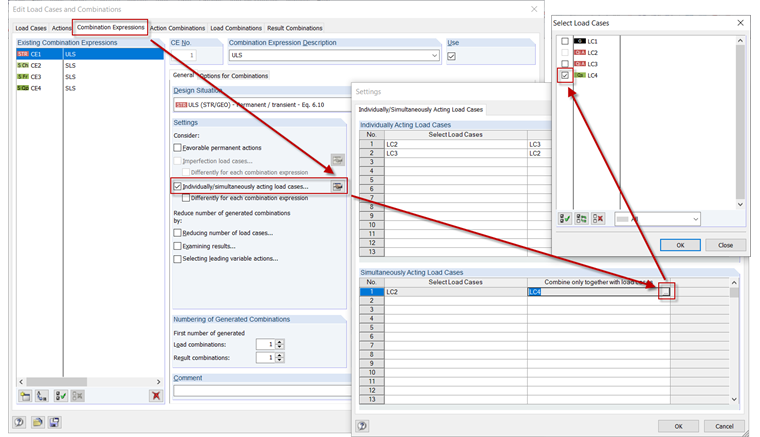

  • Open the "Edit Load Cases and Combinations" dialog box, "Combination Expressions" tab: Activate the "Individually/Simultaneously Acting Load Cases" option and make the desired setting.
    Combination Expressions
    2 Combination Expressions
