In the RF‑/TIMBER Pro add-on module, you can perform the shear force reduction for Eurocode 5 (EN 1995‑1‑1).
The regulations for the reduction are only covered in the following National Annexes:
Therefore, the provisions of DIN EN are used for all other National Annexes by default!

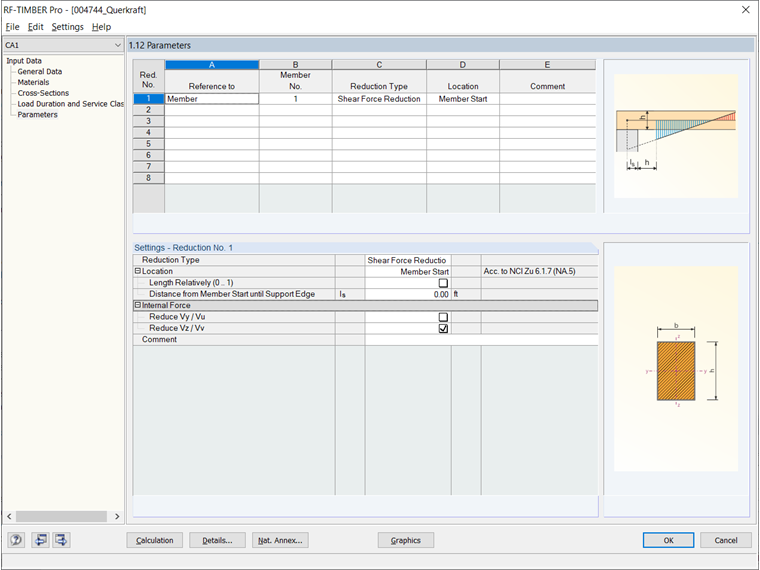

It is possible to determine the width of the support using the distance from a member start to a support edge ls.
Product Feature
Product Feature
Using the "Beam Panel" thickness type, you can model timber panel elements in 3D space. You just specify the surface geometry and the timber panel elements are generated using an internal member-surface construct, including the simulation of the connection flexibility.
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
.png?mw=512&hash=4e74affa9ad0c7b703151c5085ac9b8e59171c23)
Among others, the following cross-laminated timber manufacturers are available in the layer structure library:
By importing a structure from the layer structure library, all relevant parameters are adopted automatically. The library is continually updated.
