Answer:

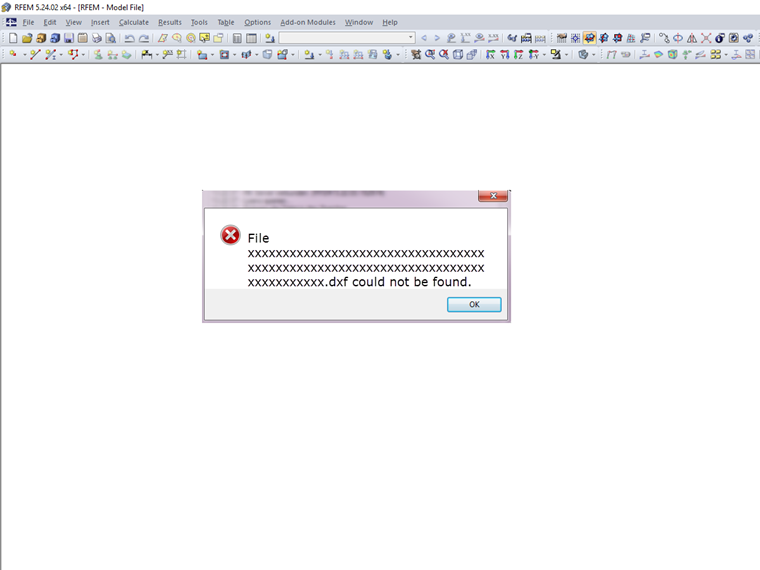

It can happen that files with very long names are not recognized and the message shown in the image appears.
In this case, we recommend renaming the dxf file accordingly, or shortening the length of the description.
Question
I would like to import a dxf file with a long file name into RFEM/RSTAB. Unfortunately, I get the error message that the file cannot be found. What should I do?
