How can I view the depth of the concrete compression zone in RF‑/CONCRETE?

Answer

In RF-/CONCRETE Members, the depth of the concrete compression zone can be viewed in the intermediate results of Window "4.1 Serviceability Limit State", see Image 01.

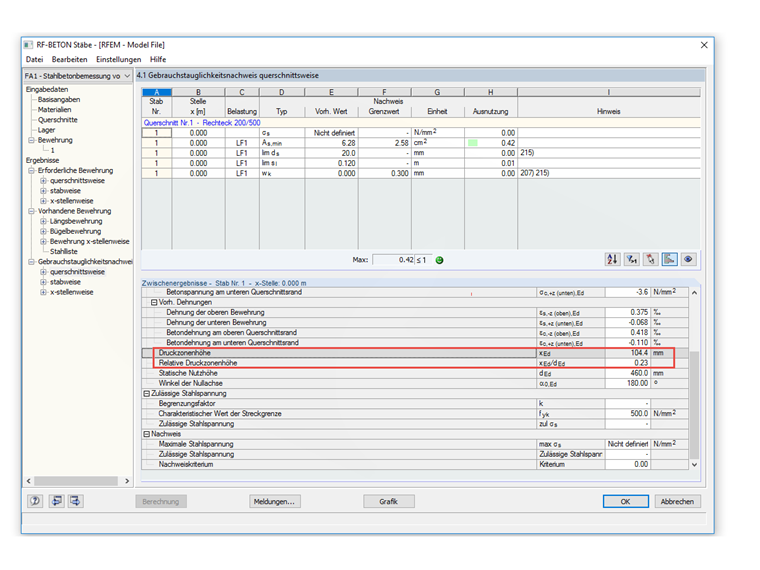

Image 01 - Depth of Concrete Compression Zone in RF-CONCRETE Members

The output takes place within the printout report when activated accordingly.

In RF-CONCRETE Surfaces, the depth of the concrete compression zone is only determined if the cross-section is cracked. It can be viewed in Window "3.1 Serviceability Limit State" in the design details of a point, see Image 02.

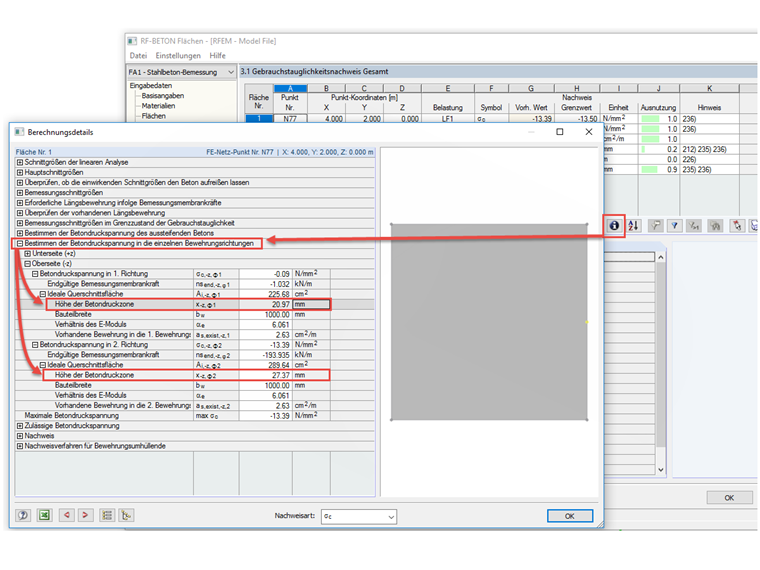

Image 02 - Depth of Concrete Compression Zone in RF-CONCRETE Surfaces

You can use the Excel button to export the design details.
