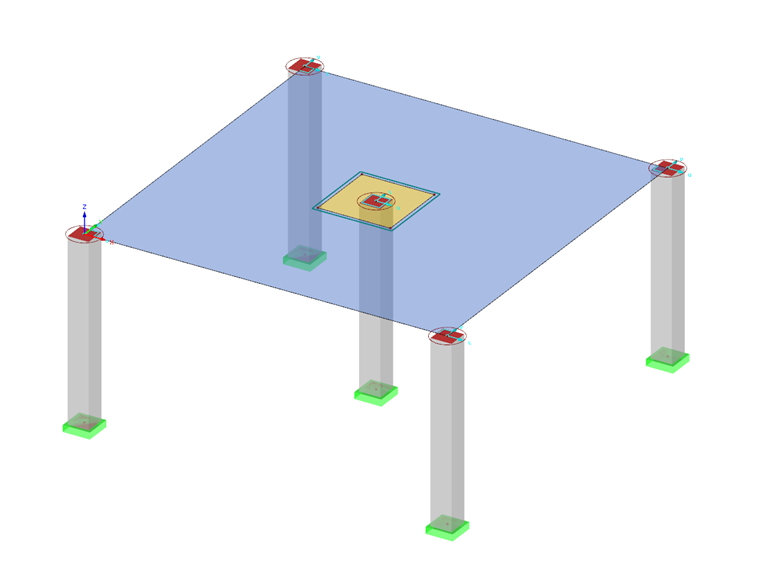

Yes, this is possible and can be done by adding in an opening in the slab and then place a thicker slab within the opening. Then the column would connect to this thicker slab along with an average region and FE mesh refinement to eliminate singularities. This can be designed within the RF-CONCRETE Surfaces add-on module.
The punching shear design module RF‑PUNCH Pro does not have the ACI or CSA standards implemented so the solution above is an alternative to this.
Do you have individual column sections and angled wall geometries, and need punching shear design for them?
No problem. In RFEM 6, you can perform punching shear design not only for rectangular and circular sections, but for any cross-section shape.
The Concrete Design add-on provides you with the option to perform the simplified fire resistance design according to EN 1992‑1‑2 for columns (Section 5.3.2) and beams (Section 5.6).
The following design checks are available for the simplified fire resistance design:
You can determine the internal forces for the fire resistance design according to two methods.
Furthermore, it is possible to modify the axis distance according to Eq. 5.5.
With the Concrete Design add-on, you can perform the fatigue design of members and surfaces according to EN 1992‑1‑1, Chapter 6.8.
For the fatigue design, you can optionally select two methods or design levels in the design configurations:
The Concrete Design add-on allows you to perform the seismic design of reinforced concrete members according to EC 8. This includes, among other things, the following functionalities:
