Modal Analysis

How can I display mode shapes in RFEM 6 and RSTAB 9?


Answer:

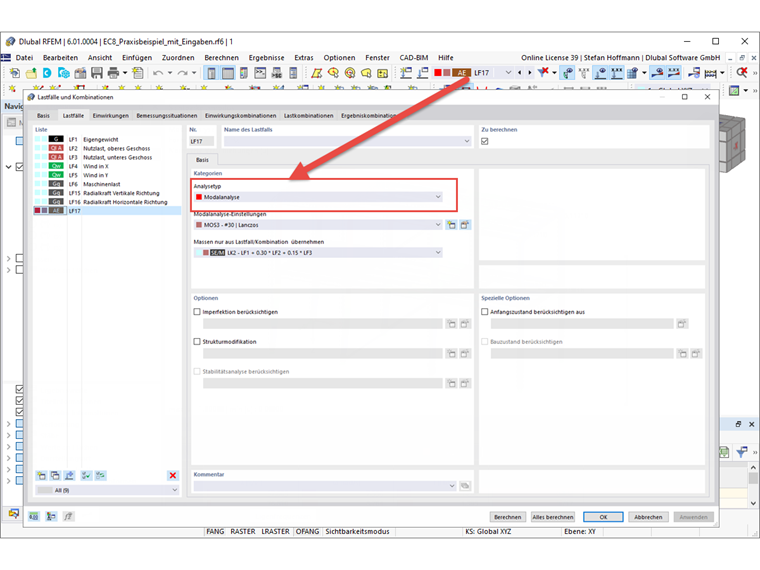

In order to display the mode shapes of your dynamic analysis, you have to create a load case of the Modal Analysis type and specify your settings for the modal analysis there.

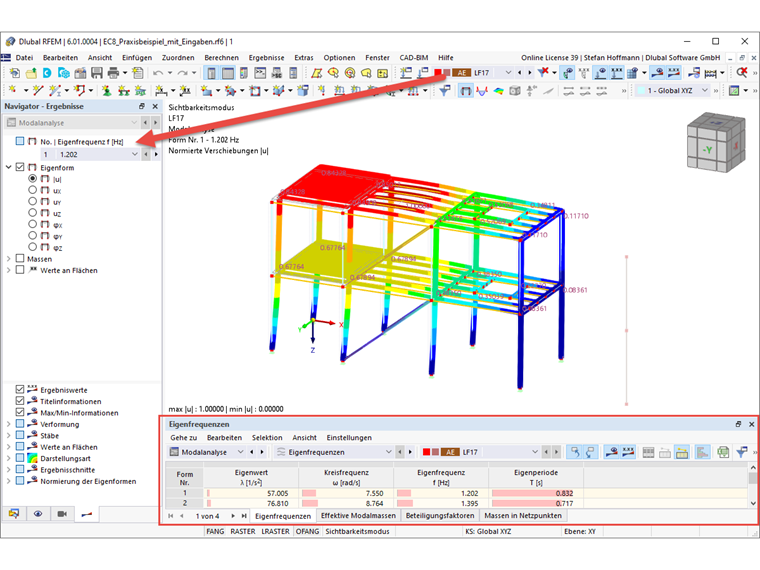

After the calculation, you can evaluate your results in the Results navigator. You can see further information in the table.
