Answer:

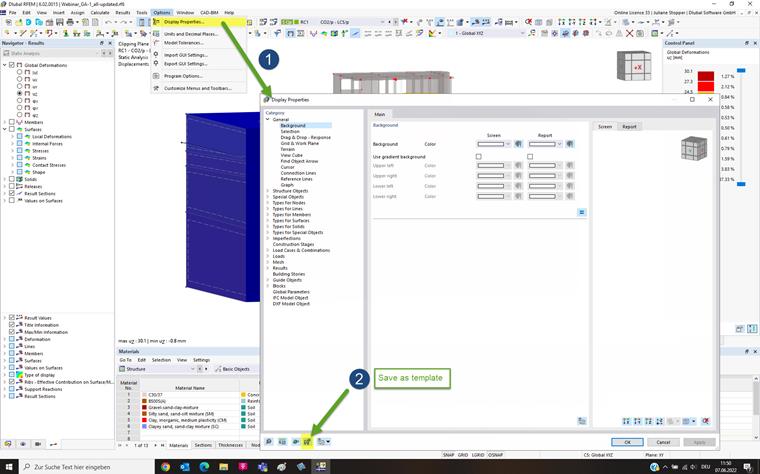

You can save the current settings of the display properties as a template directly in the "Display Properties" dialog box by using the icon in the footer, marked as Point 2 in the image.
