Display Factor for Deformations / Internal Forces in Printout Report / Graphic Printout

Where can I set the factor for deformation display factor for graphical printout, for example, in the printout report?

Answer:

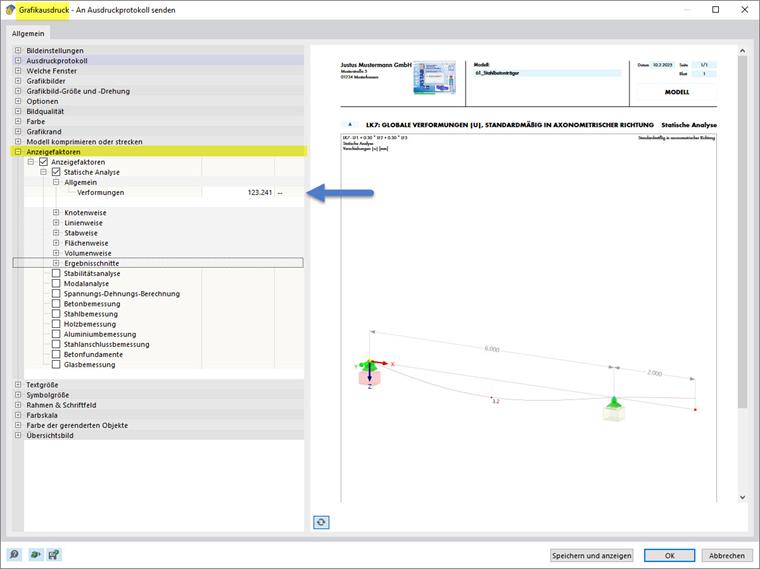

In the graphic printout dialog box, there is a separate section for controlling the display factors, where you can set the factor for deformations and many other results. The image below shows the corresponding input dialog box.

FAQ 005655 explains where you can specify the display factor for showing deformations in a printout report.
Display Factor for Deformations
