Displaying Results in Multiple Windows and Printing Them Simultaneously

Can I display multiple result views simultaneously in RFEM 6 and also include them in the printout report?

Answer:

You can select various layouts from the Window menu. This allows you to display different views or result displays of a model simultaneously in multiple subwindows.

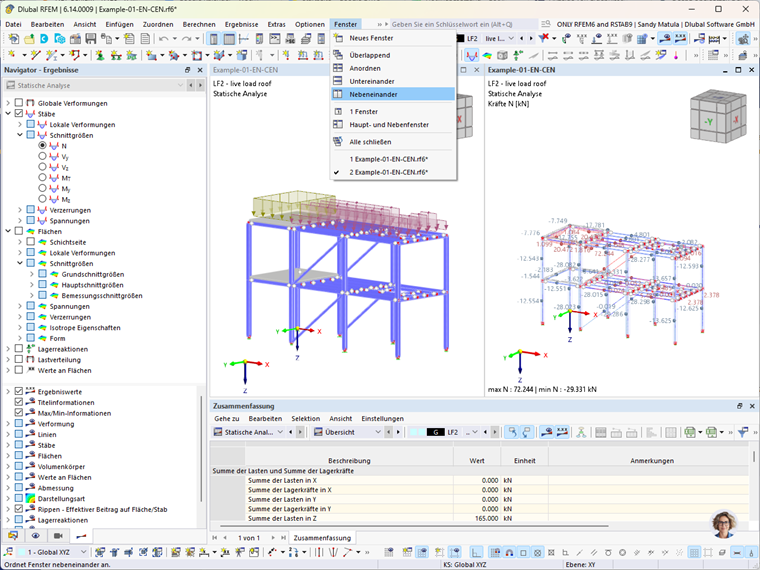

Display of two windows in RFEM 6 showing load case loading and axial forces side by side.
Comparison of Loads and Axial Force Display in RFEM 6

The selected window layout can also be applied to the printout report. This allows you to print multiple graphics on a single page to save space.

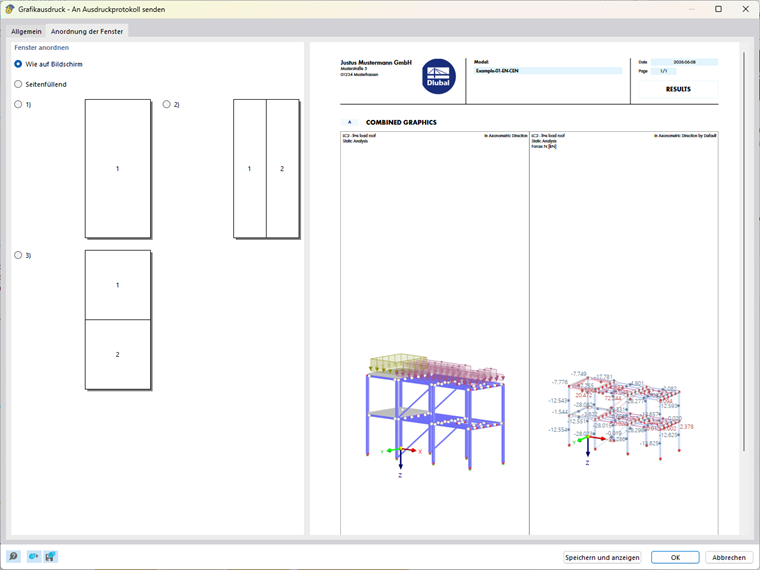

Graphic printout dialog box for selection and arrangement of multiple window printout.
Dialog Box for Multi-Window Printout in Printout Reports

This feature is particularly helpful when you need to directly compare different results or summarize multiple model views in your documentation.
