Display Factor for Deformations in Clipboard

Is it possible to copy the display factor for deformations under pressure to the clipboard?

Answer:

To ensure that the display factors for deformations are copied to the clipboard when printing, it is necessary to activate the corresponding option.

If this option is selected in the “Graphic Printout - Create Image on Clipboard” dialog box, the saved display factors are applied.

If, however, the “Display Factors” option is not selected, the values are not copied to the clipboard when printing. Instead, RFEM 6 automatically resets the display factors to their default values.

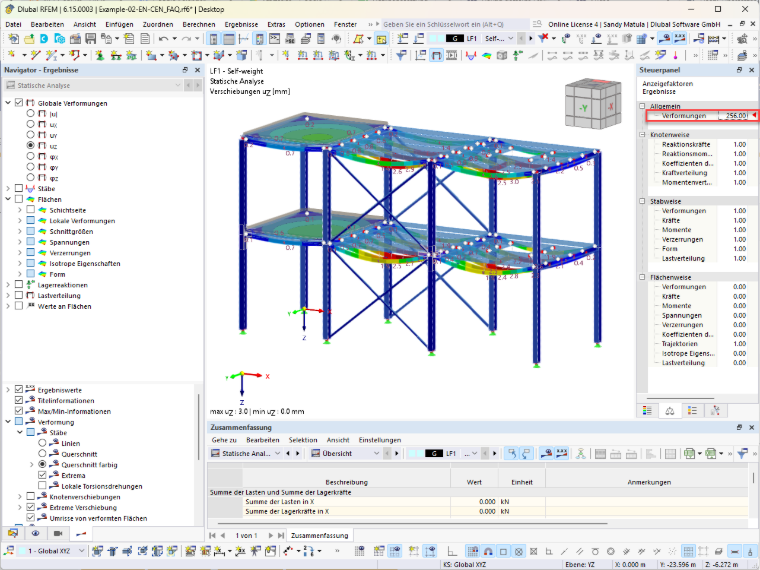

Calculated RFEM model shows structural deformations with a color scale.
Deformation Display of Model with Display Factor

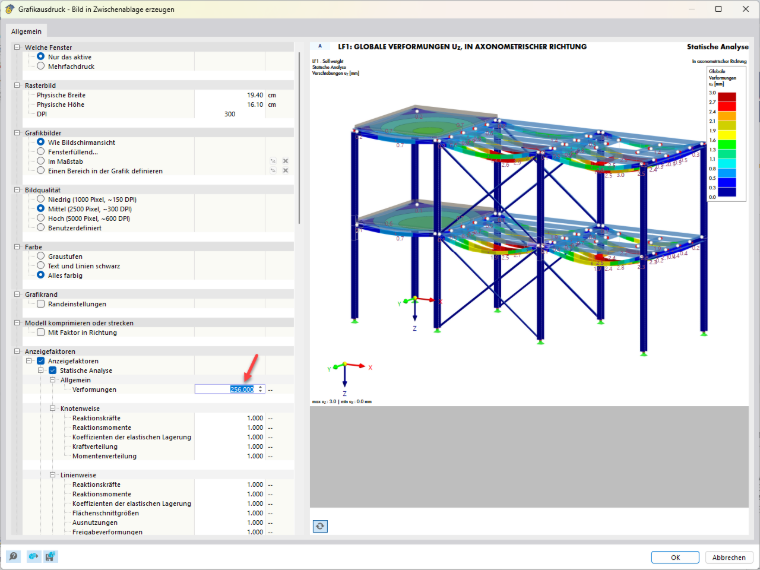

Dialog box for creating graphic printouts to the clipboard with activated display factors.
Dialog Box for Graphic Printout with Activated Display Factor
