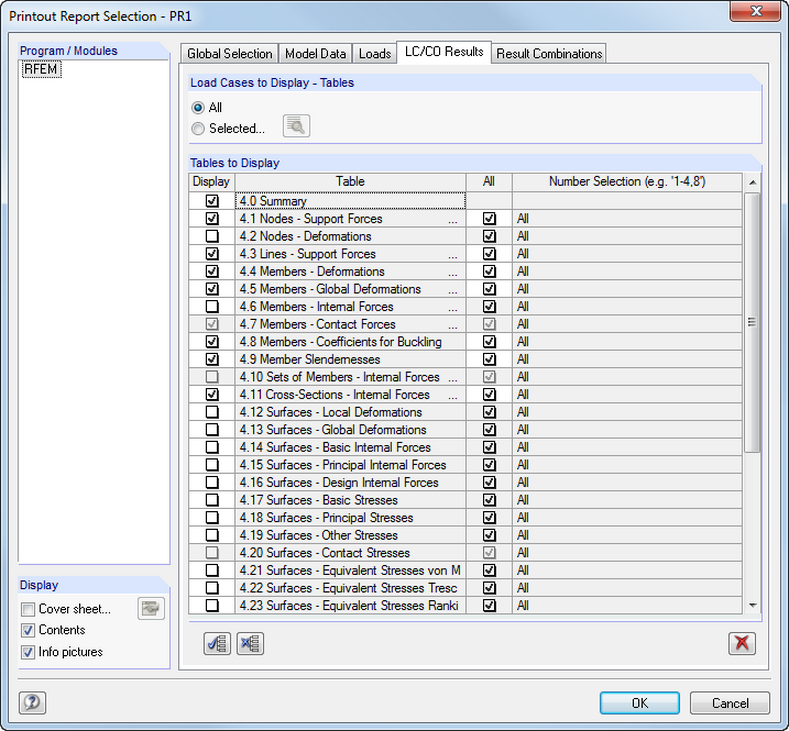

The extent of a printout report can be individually adjusted by means of selection criteria. You can create printout templates based on already existing printouts and reuse them globally for all design projects.
Management of Printout Report Scope
When archiving projects, you can also save other document files from the project folder. Then, the data are compressed in a ZIP file. The advantage is that the archive can be unzipped by programs other than Dlubal Software programs.
The project manager can also manage subprojects. The manager displays the relevant information of each model; for example, the date of creation and latest modification of a structure, as well as the related user name. In addition, you can see the dimensions and weight of each structure. It is possible to restore accidentally deleted projects from the integrated recycle bin.
There is a mass print function for the model data, loads, and results. It is possible to create graphics from different defined directions. For example, you can print all internal forces as an isometric view with a single mouse click.
The first result table displays a summarized overview providing the equilibrium of forces in the structural system and the maximum deformations. Information about the calculation process is included as well. You can filter the result tables by specific criteria such as extreme values or design locations.
