Displaying and Hiding Objects

Tips & Tricks

22 September 2015

000066

Modeling | Structure

RFEM

RSTAB

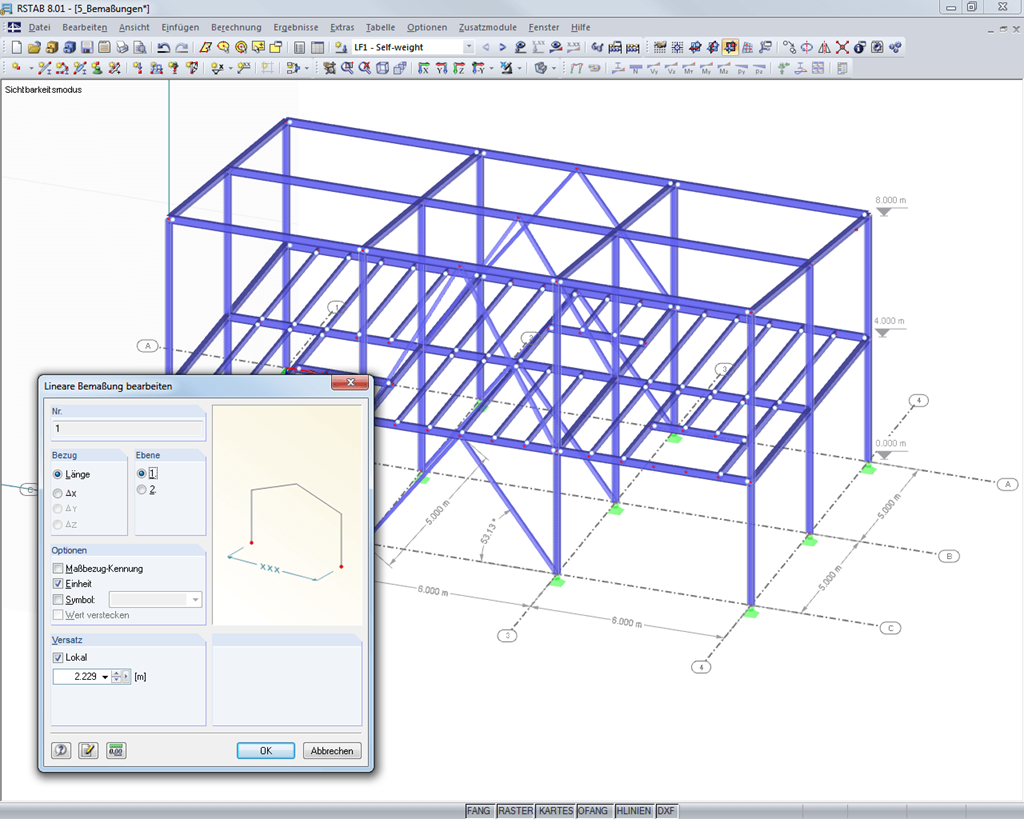

It is possible to specifically display or hide various objects such as nodes, members, supports, and others. You can dimension the model by using lines, archs, inclinations, or height elevations. Freely created guidelines and comments facilitate the input and evaluation. You can also display or hide guide objects individually.
