Weiterhin stehen die Programme RX-HOLZ Pfette zur Bemessung von Koppelpfetten und Durchlaufträgern, RX-HOLZ Rahmen zur Bemessung von Dreigelenkrahmen, RX-HOLZ Verband zur Bemessung von Fachwerkverbänden sowie RX-HOLZ Dach zur Bemessung von Holzdächern zur Verfügung.
These programs are not included in the RX‑TIMBER Package.
Knowledge Base
Product Feature
You have the option to perform the fire resistance design of surfaces using the reduced cross-section method. The reduction is applied over the surface thickness. It is possible to perform the design checks for all timber materials allowed for the design.
For cross-laminated timber, depending on the type of adhesive, you can select whether it is possible for individual carbonized layer parts to fall off, and whether you can expect increased charring in certain layer areas.
Did you know? In the Design Supports, you can now define fully threaded screws as transversal compression stiffening elements for the "Compression Perpendicular to Grain" design. In this case, the pressing-in and buckling of the bolts is analyzed.
Moreover, the design shear resistance is checked in the plane of the screw tip. The angle of dispersal can be considered as linear under 45° or nonlinear (according to Bejtka, I. (2005). Verstärkung von Bauteilen aus holz mit vollgewindeschrauben. KIT Scientific Publishing.).
In RFEM and RSTAB, you can design members with the "Laminated Veneer Lumber" material type. The following manufacturers are available:
In the ultimate configuration, you can consider strength coefficients for increasing the strengths. The coefficients reducing the strengths are automatically taken into account regardless of this. Try it now!
Go to Explanatory Video
In the Timber Design add-on for RFEM, you can design members as well as surfaces according to Eurocode 5, SIA 265 (Swiss standard), CSA O86 (Canadian standard), or ANSI/AWC NDS (American standard); for example, cross-laminated timber, glued-laminated timber, softwood, mass timber, and so on.
Go to Explanatory Video
Main Program
The new generation of 3D FEA software is used for the structural analysis of members, surfaces, and solids.
Add-On
The Timber Design add-on performs the ultimate, serviceability, and fire resistance limit state design checks of timber members according to various standards.
Add-On
The Structure Stability add-on performs stability analysis of structures. It determines critical load factors and the corresponding stability modes.
Main Program
The modern 3D structural analysis and design program is suitable for the structural and dynamic analysis of beam structures as well as the design of concrete, steel, timber, and other materials.
Add-On
The Timber Design add-on performs the ultimate, serviceability, and fire resistance limit state design checks of timber members according to various standards.
Stand-Alone Program
Timber design of single-span and wide-span glulam beams according to Eurocode 5 or DIN 1052
Stand-Alone Program
Timber design of simple, continuous, and Gerber beams with or without cantilever according to Eurocode 5 or DIN 1052
Stand-Alone Program
Timber design of rectangular and circular columns according to Eurocode 5 or DIN 1052
Stand-Alone Program
Timber design of coupled purlins and continuous beams according to Eurocode 5 or DIN 1052
Stand-Alone Program

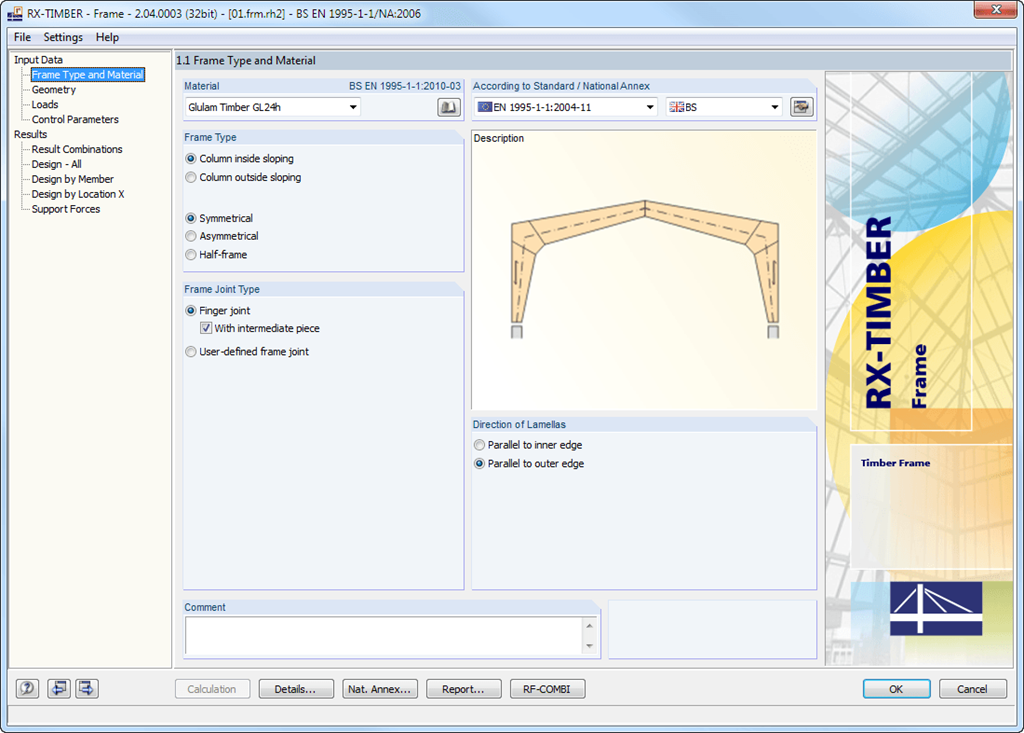

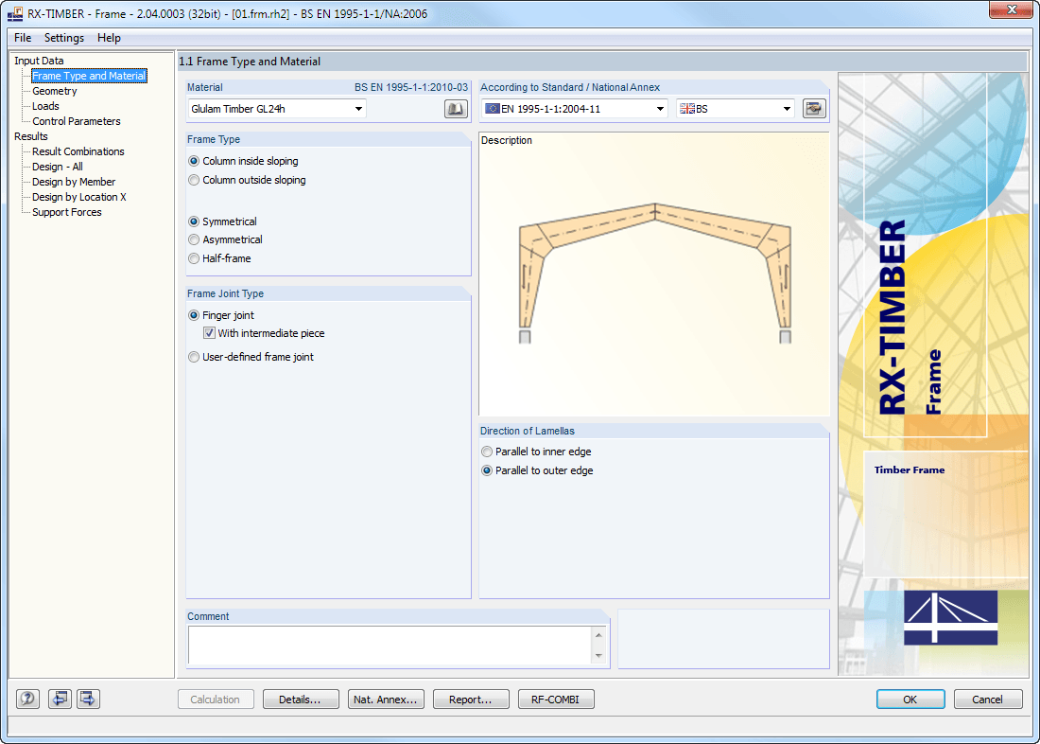

Timber design of three-hinged frames with finger joint connections according to Eurocode 5 or DIN 1052
Stand-Alone Program
Timber design of stiffening truss bracing according to Eurocode 5 or DIN 1052
Stand-Alone Program
Timber design of flat, monopitch, and duopitch roofs according to Eurocode 5
