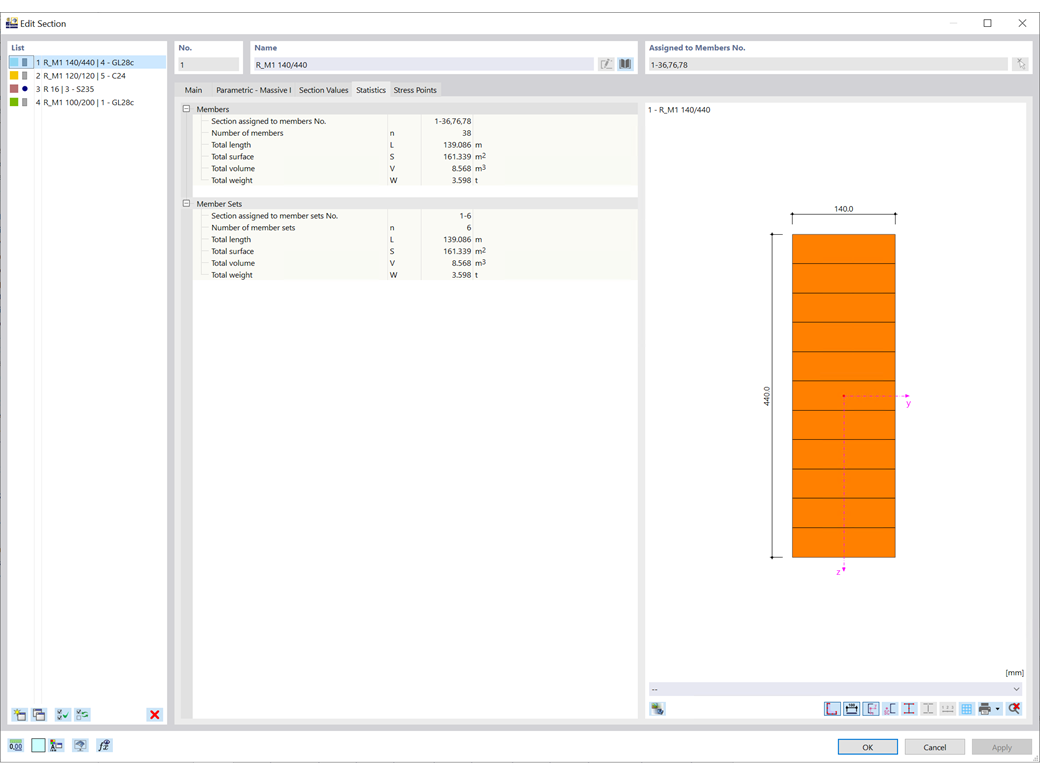

Keep an eye on your cross-sections. Useful statistical information, such as total length, total volume, total weight, and so on, is displayed for all cross-sections used in your project.
Statistics for Sections
