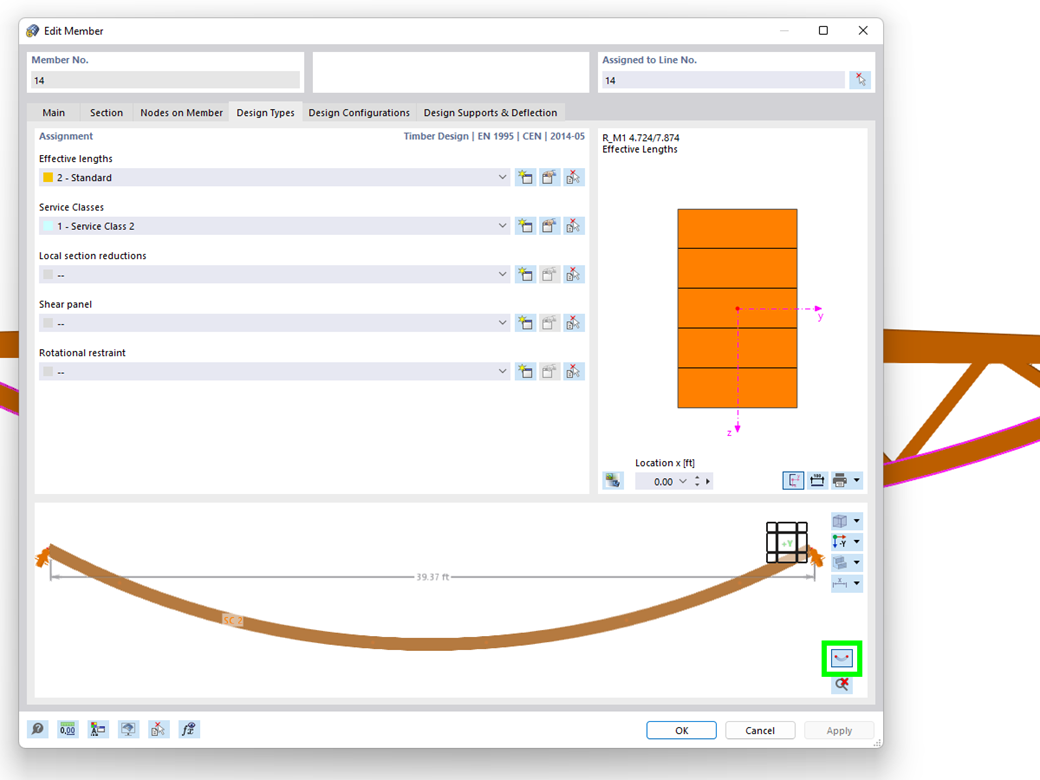

Representation of Actual Beam Shape in Member Properties

The "Design Types" tab in the member properties allows you to optionally display the real element geometry. Using this feature, you get a clear representation of

  • curved beams,
  • buckled poly-members, and
  • buckled member sets

to define the design properties.
