Punching Reinforcement Types According to ACI and CSA Standards

For punching shear design according to the American ACI standard and the Canadian CSA standard, you can select from six different punching shear reinforcements:

  • Stirrups
  • Multiple legs
  • Crossties
  • Double-headed studs
  • Headed studs with a base rail at bottom
  • Headed studs with a base rail at top

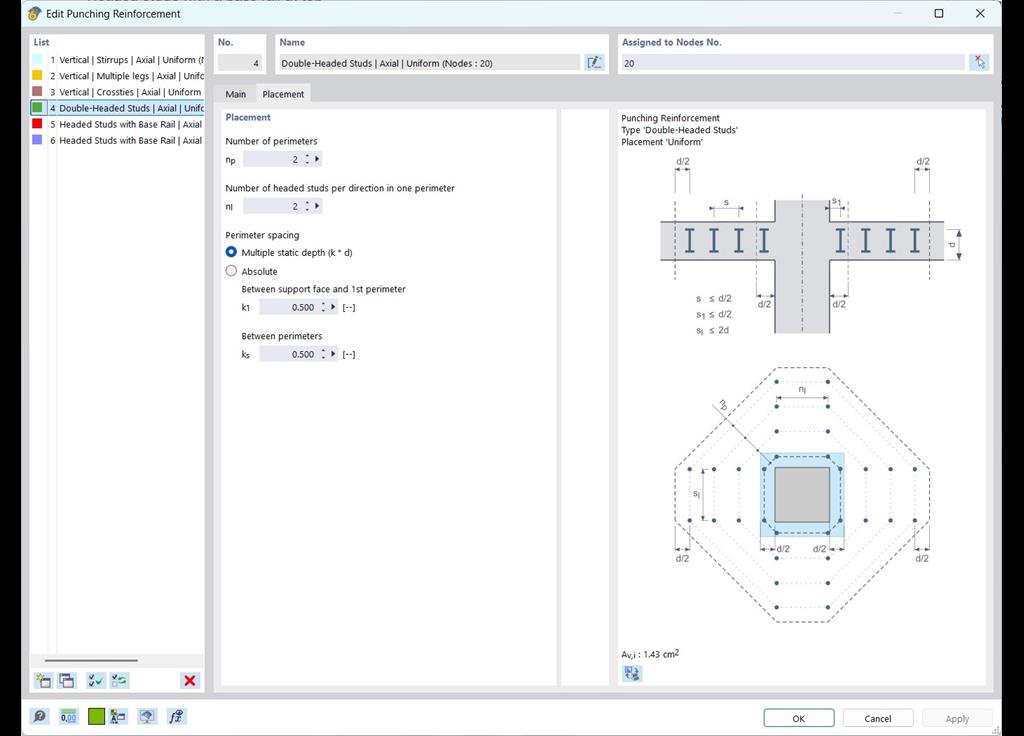

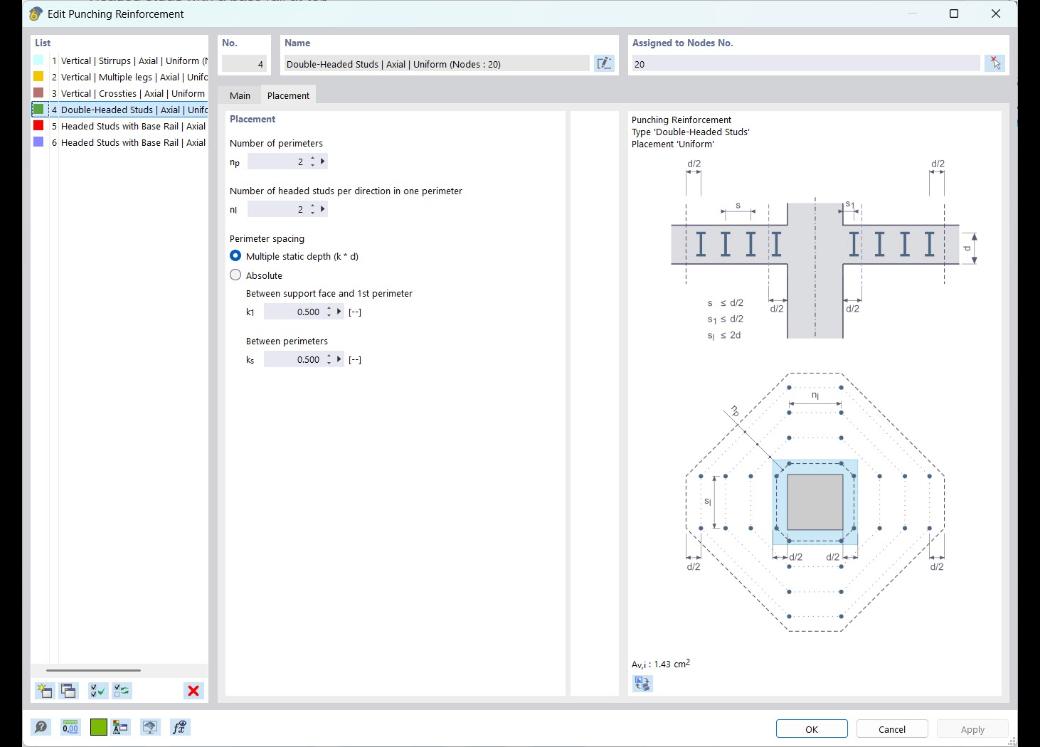

Display of punching shear reinforcement according to ACI and CSA
Punching Shear Reinforcement for ACI and CSA Standards
;
