DXF Export of 3D Scene

Using the “Export 3D scene to DXF” function, you can export lines while considering their visibility.
Depending on the rendering settings in the Navigator - Display, you can also export the boundary lines of members and surfaces, center lines of reinforcement, steel connection graphics, and so on.

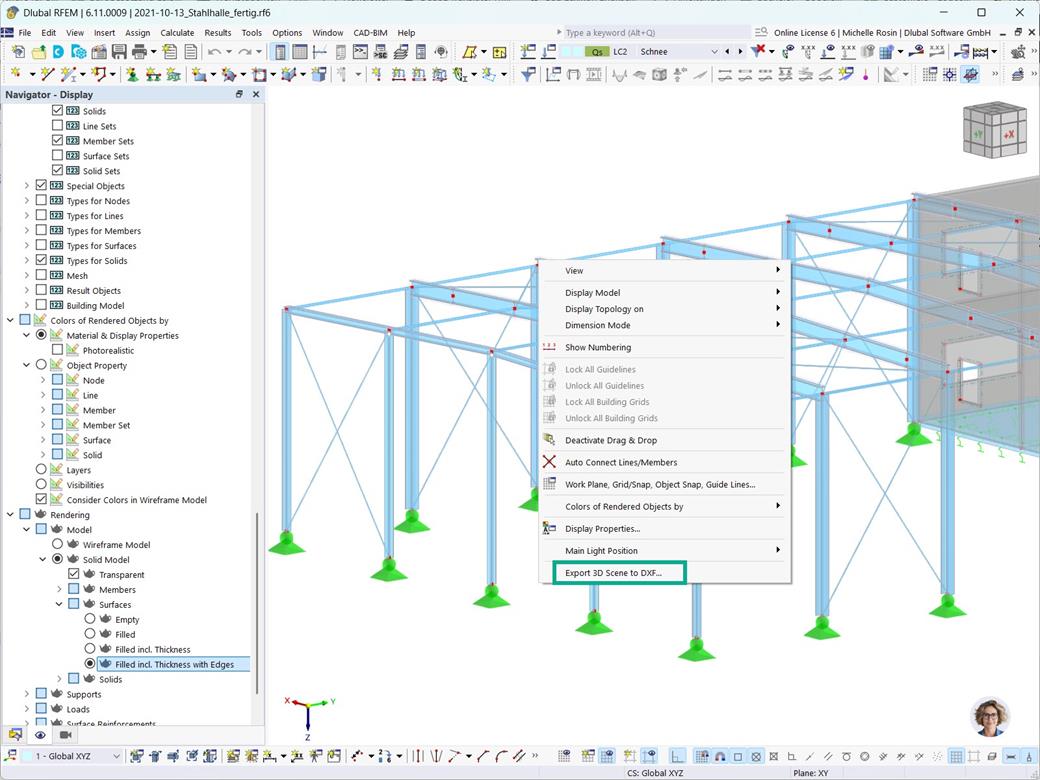

Export 3D scenes to DXF files, including lines and graphics based on visibility in the rendering.
Exporting 3D Scene to DXF
;
