Extended Bolt Diameters for Design According to EN 1993-1-8

The Steel Joint add-on also provides you with the option of using bolts outside the scope of EN 1993-1-8 (M12 - M36). This allows you to select bolts and anchors with diameters ranging from M6 to M64 for your connection. For smaller diameters (M6 - M10), the load-bearing capacity is reduced.

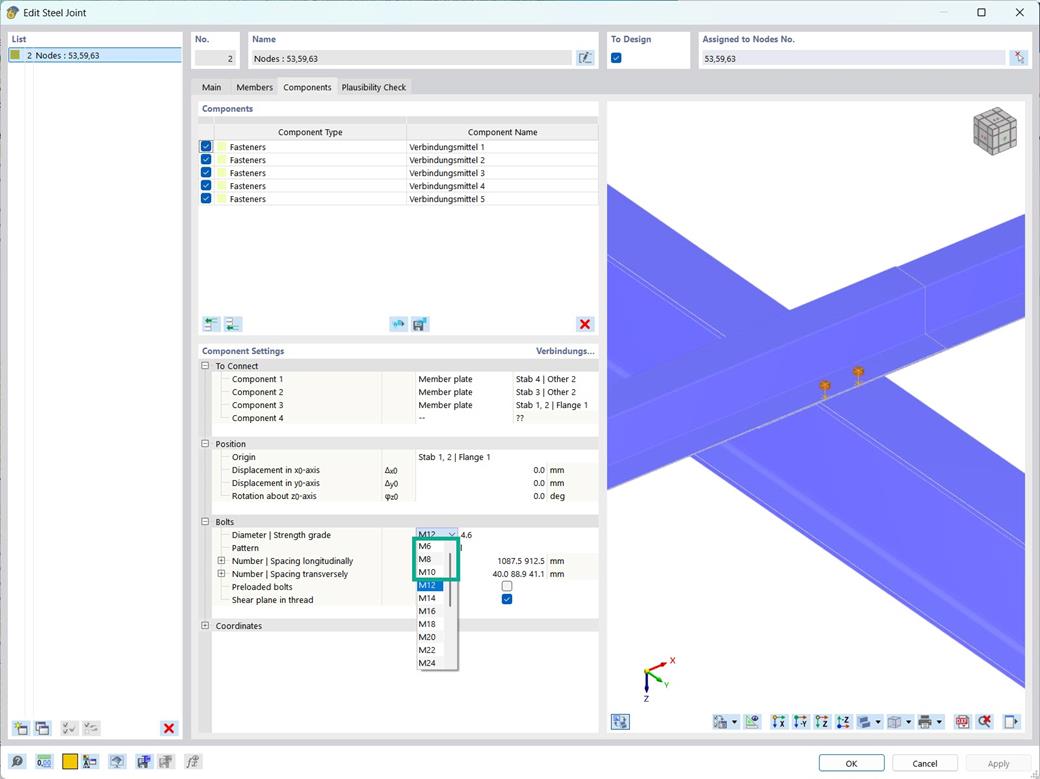

Extended bolt diameters in the Steel Joints add-on, M6 to M64 available.
Extended Bolt Diameters in Steel Joints Add-on
;
