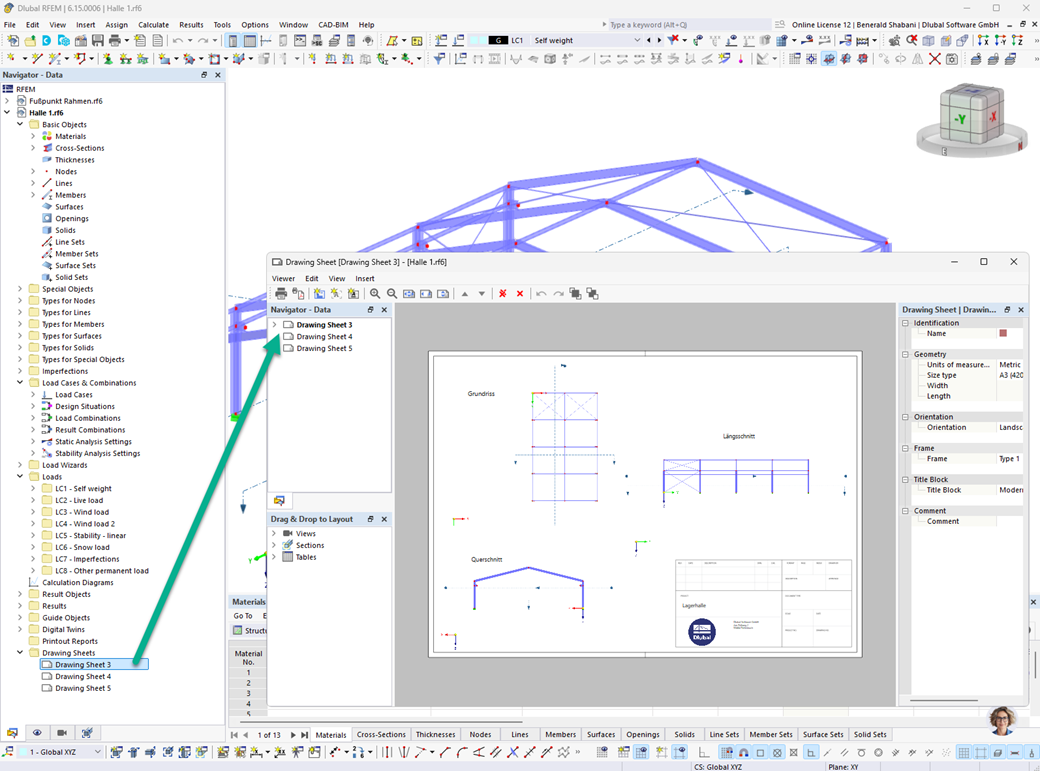

In RFEM and RSTAB, you can create drawing sheets (for example, item lists, project plans). You can upload frames, text boxes, views, and sections from the 3D model, as well as images, text, MD blocks, and result tables, to the drawing sheets.
Furthermore, you can create construction lines directly in the 3D model and organize them using layer control, just like all other objects. This allows you to create your output drawings directly from the model, rather than having to maintain the geometry and layout separately.
This ensures drawings that are always consistent with the model and reduces the effort required to reconcile the 3D model with the drawing output.
