Beam Panel | Units and Default Values

  1. Introduce new "unit": "Sheathing dimensions" (see Image 01).
  2. Connect the new unit to the sheathing dimensions (see Image 02)
  3. Set the default values for the sheathing dimensions as shown in Image 03 for the metric and Image 04 for the US/CAN design/region.
New unit displaying sheathing dimensions in a construction model for accurate analysis.

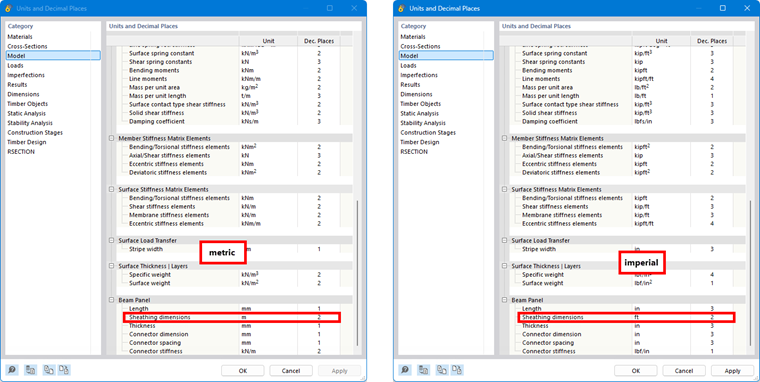

01 New Unit: "Sheathing Dimensions"
Connecting a new device to the dimensions of a structural shell element under analysis.

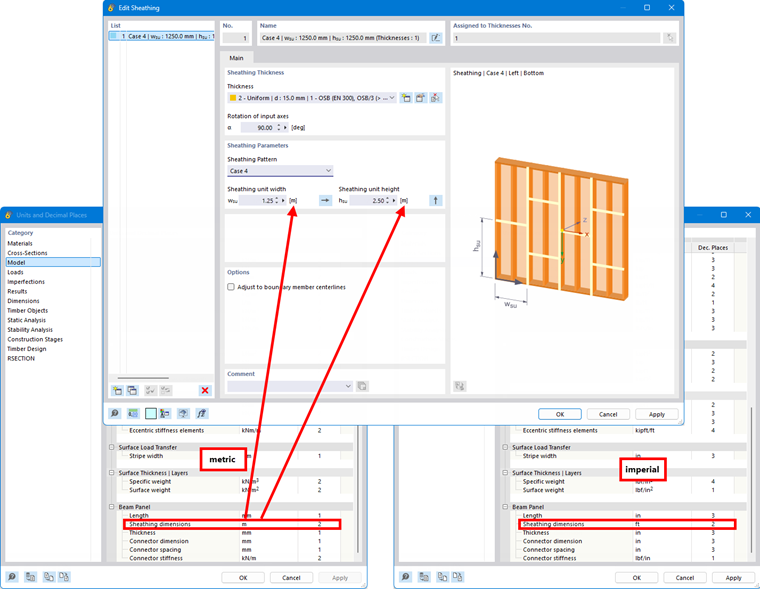

02 Connecting New Device to Shell Dimensions
Interface for setting default values for sheathing dimensions in structural design software.

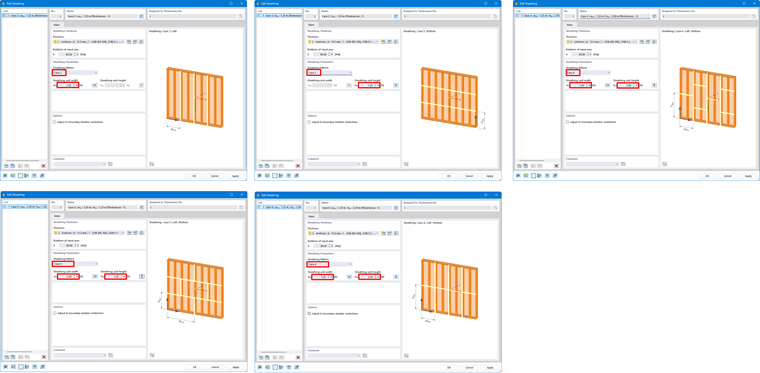

03 Setting Default Values for Sheathing Dimensions | Part 1
Dialog showing default settings for sheathing dimensions in structural analysis software with various numerical inputs and options.

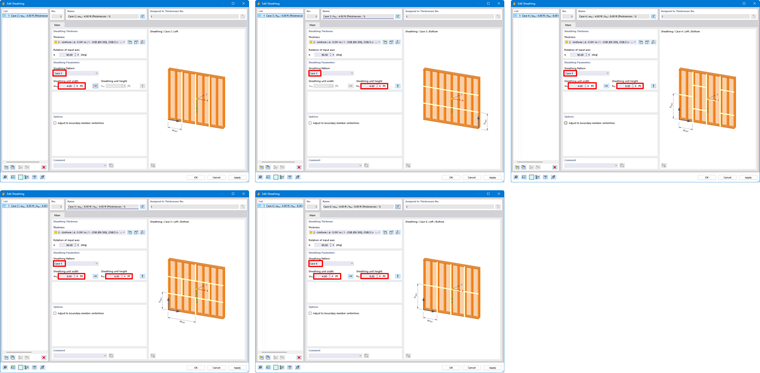

04 Setting Default Values for Sheathing Dimensions | Part 2
;
