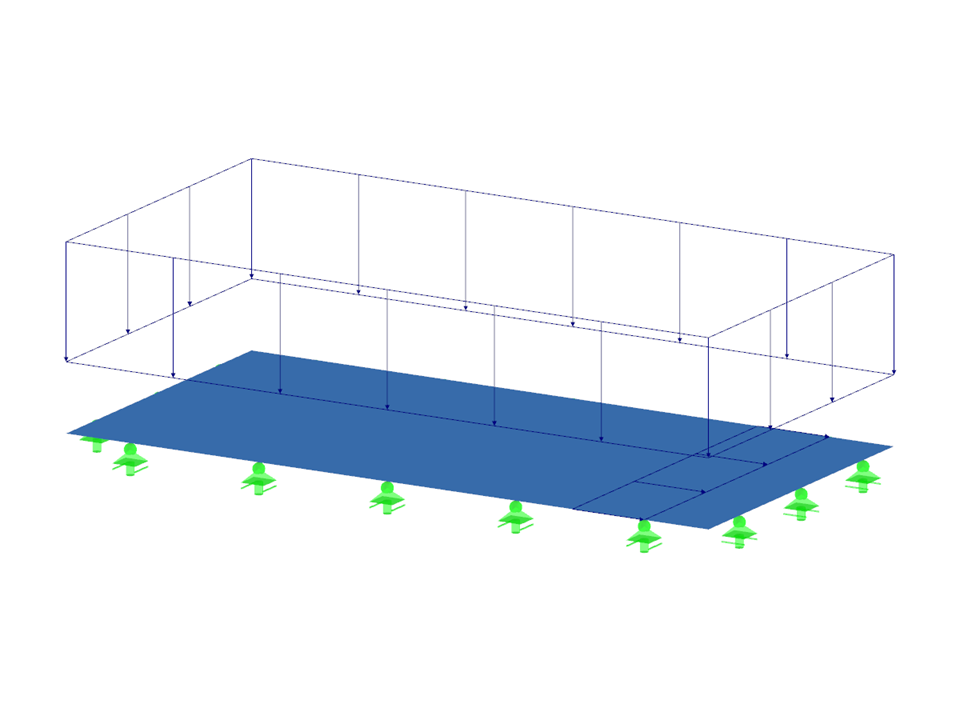

A simply supported rectangular Kirchhoff plate is subjected to both uniformal distrubuted lateral and transversal load. Assuming small deformations, the maximum out-of-plane deflection is determined.
Verification Example 000070 | 1
| Number of Nodes | 4 |
| Number of Lines | 4 |
| Number of Surfaces | 1 |
| Number of Load Cases | 1 |
| Dimensions | 6.56 x 3.28 x 0 feet |
| Program Version | 5.06.30 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
