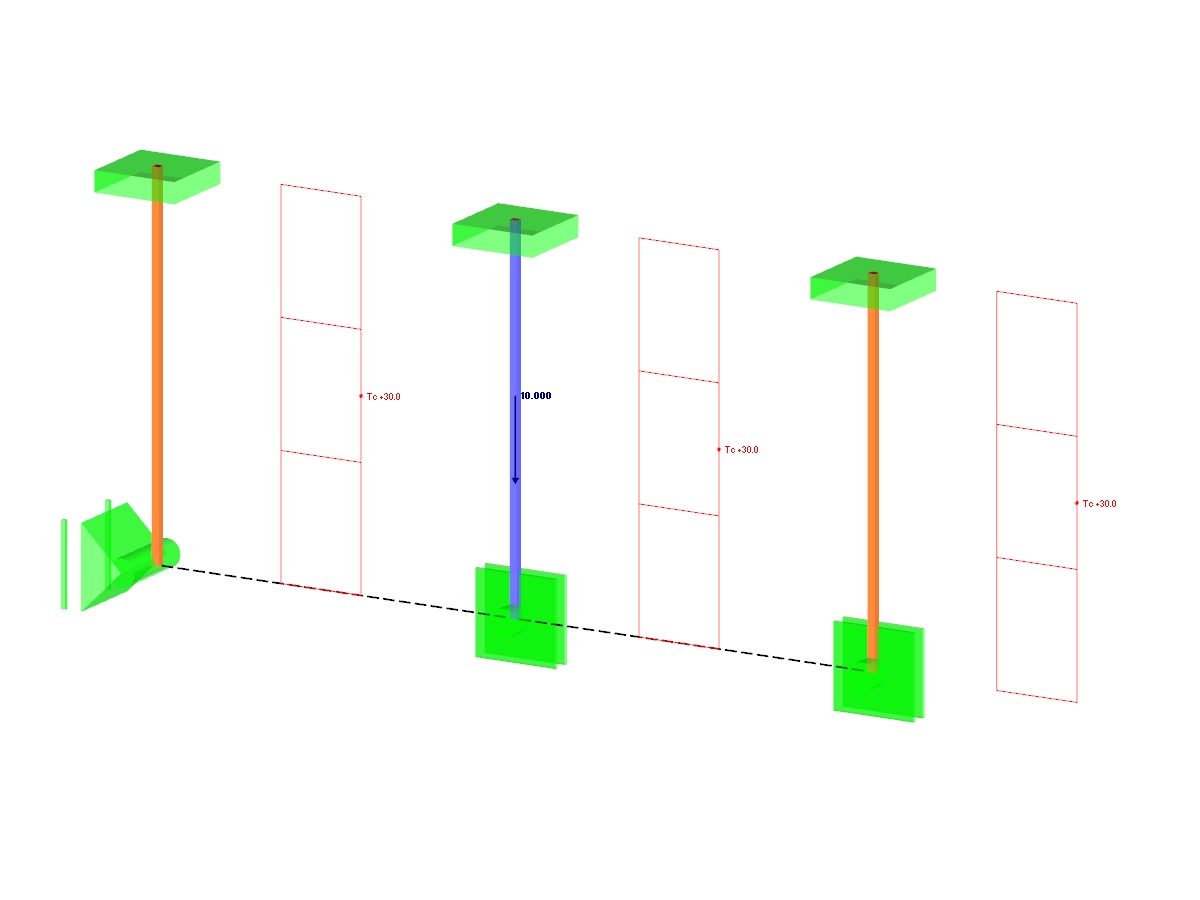

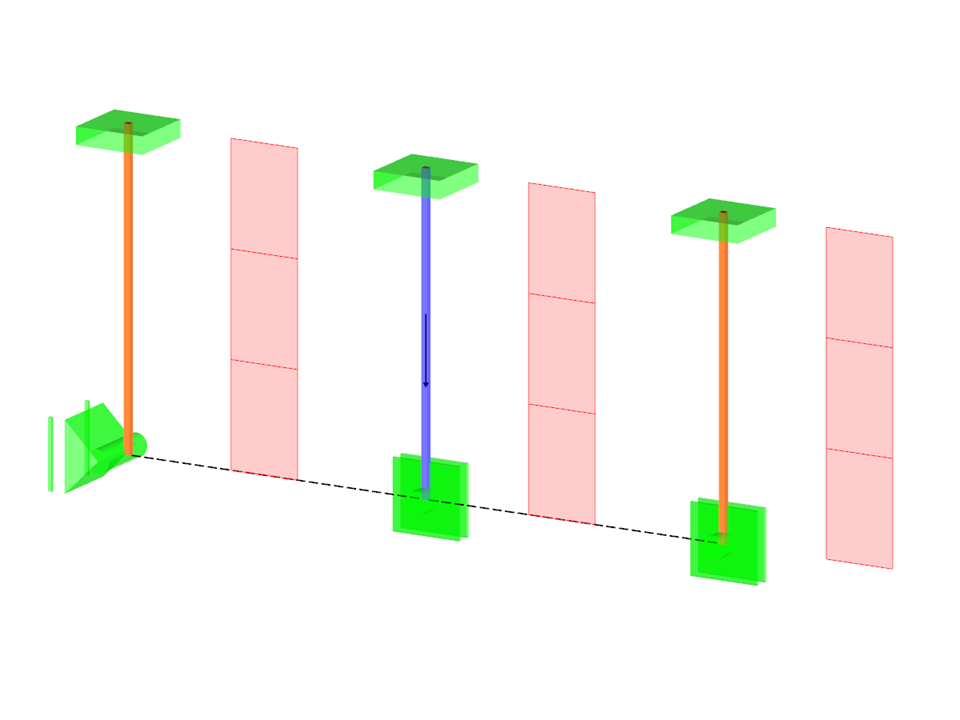

A truss structure consists of three rods - one steel and two copper joined by a rigid member. The structure is loaded by a concentrated force and by a temperature difference. While neglecting self‑weight, determine the total deflection of the structure.
Verification Example 000076 | 1
Number of Nodes | 6 |
Number of Lines | 5 |
Number of Members | 5 |
Number of Load Cases | 1 |
Total Weight | 0.001 tons |
Dimensions | 3.51 x 0.23 x 1.87 feet |
Program Version | 5.10.01 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
