The mathematical pendulum consists of a zero‑weight rope and a mass point at its end. The pendulum is initially deflected. Determine the angle of the rope at the given test time.


(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

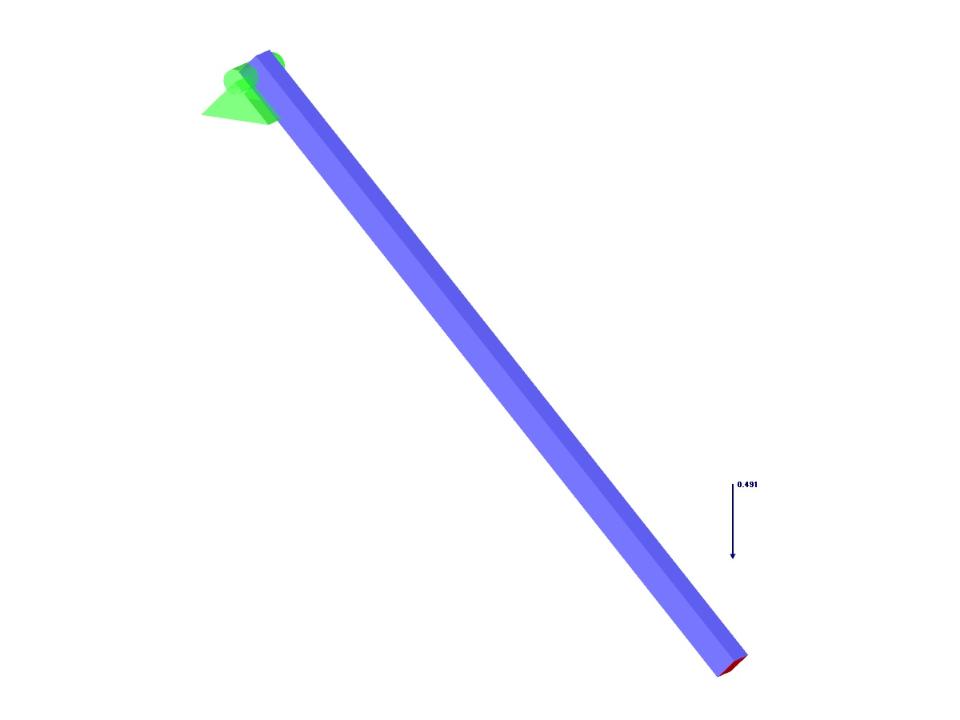

Verification Example 000118 | 1

Number of Nodes 2
Number of Lines 1
Number of Members 1
Number of Load Cases 1
Total Weight 0.028 tons
Dimensions 3.44 x 0.32 x 3.44 feet
Program Version 5.09.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
